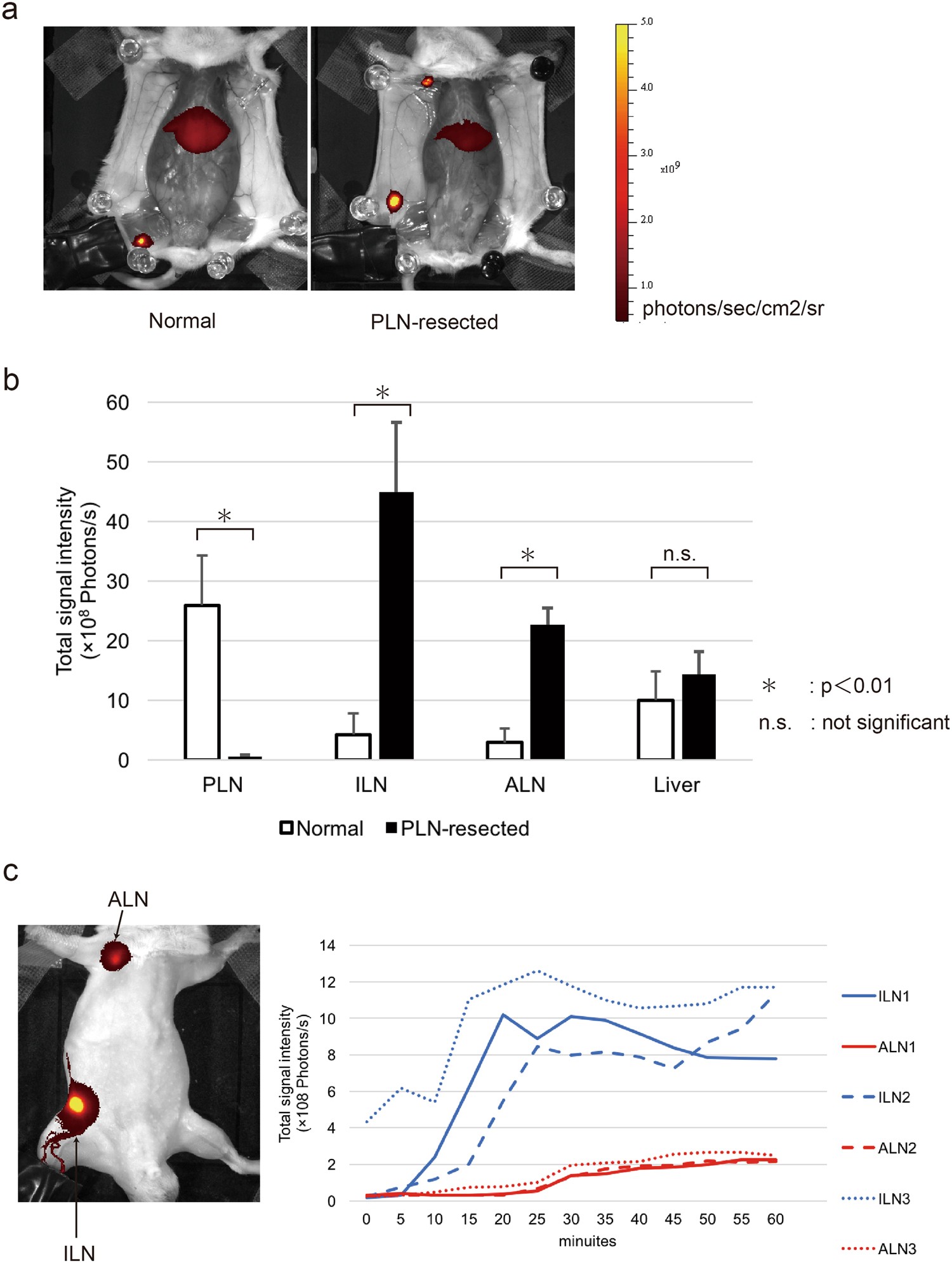

Quantitative analysis of DiR-labelled liposomes in PLN-resected mice using the IVIS. (a) Typical images of the distribution of DiR-labelled liposomes. (b) Quantification of the fluorescent signals derived from DiR-labelled liposomes in the PLN, ILN, ALN, and liver of normal and PLN-resected mice at 120 min after the injection of DiR-modified liposomes. (c) Time-dependent change of fluorescent signals in the ILN and ALN.
