Figure 3
From: In-situ Cutting of Graphene into Short Nanoribbons with Applications to Ni-Zn Batteries

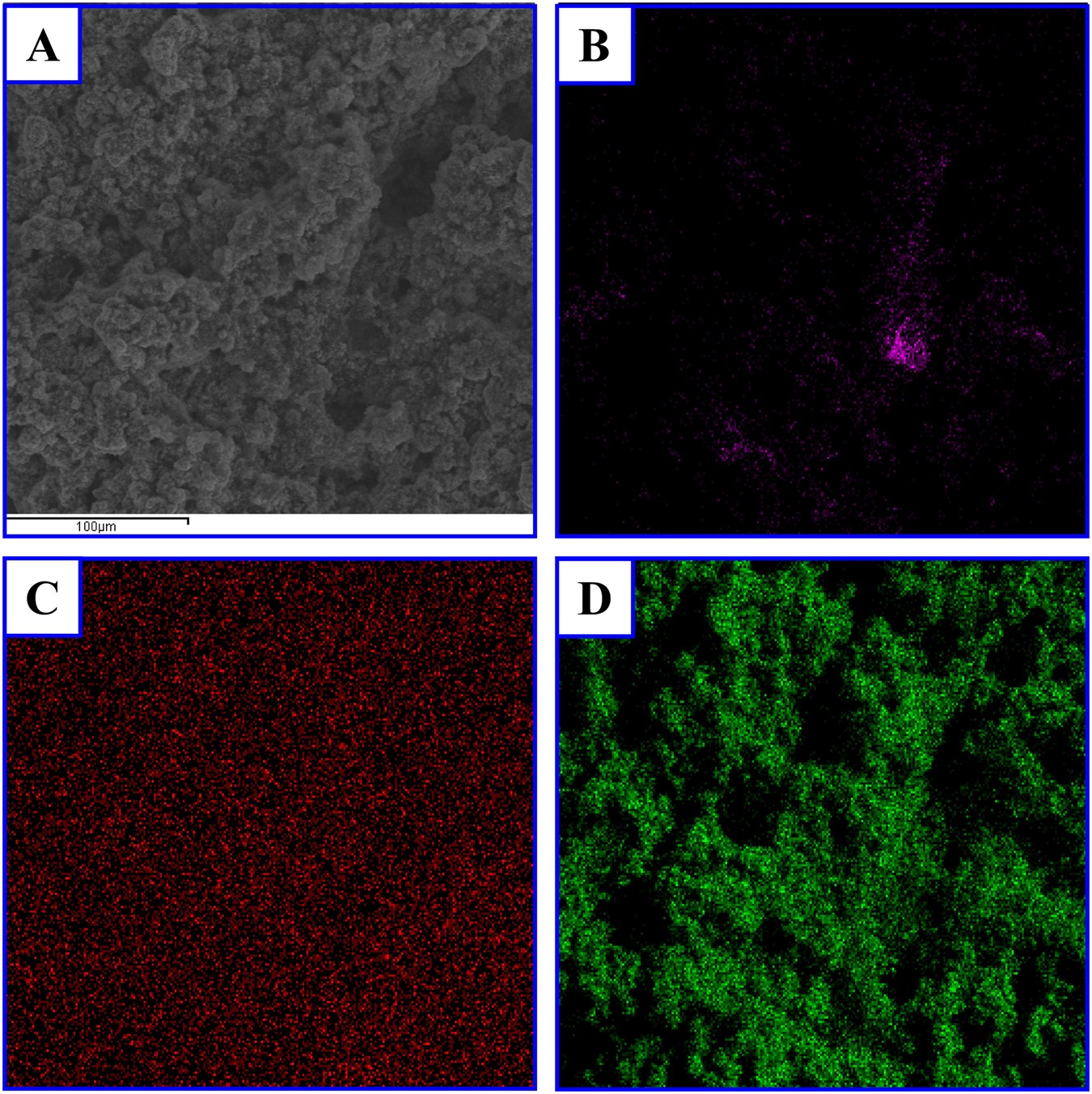

EDS analysis results of the SEM microstructures of graphene-ZnO hybrid electrode (80.7 wt% ZnO) after 1000 cycles. (A) SEM image. (B) EDS map of C. (C) EDS map of Zn. (D) EDS map of O.
