Figure 3
From: A Multi-Parameter Analysis of Cellular Coordination of Major Transcriptome Regulation Mechanisms

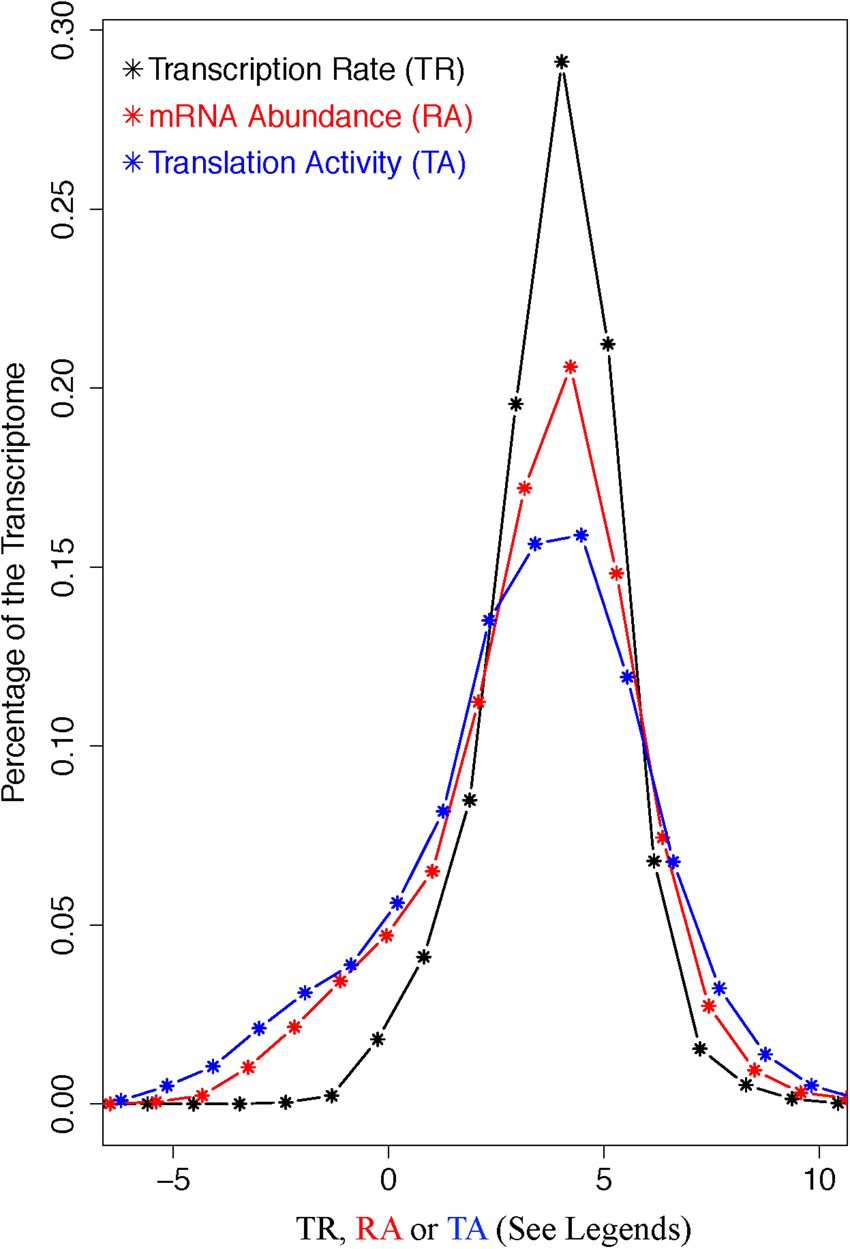

Comparison of the profiles/histograms of the three transcriptome parameters – TR, RA and RA. Histograms of TR (black), RA (red) and TA (blue) are shown as specified by the legends inside the figure. The RA and TA histograms are shifted a little bit so that the three histograms have theirs peaks in the same x-axis range, in order to better display the increased levels of dispersion from TR and RA and then to TA.
