Figure 6
From: A death pheromone, oleic acid, triggers hygienic behavior in honey bees (Apis mellifera L.)

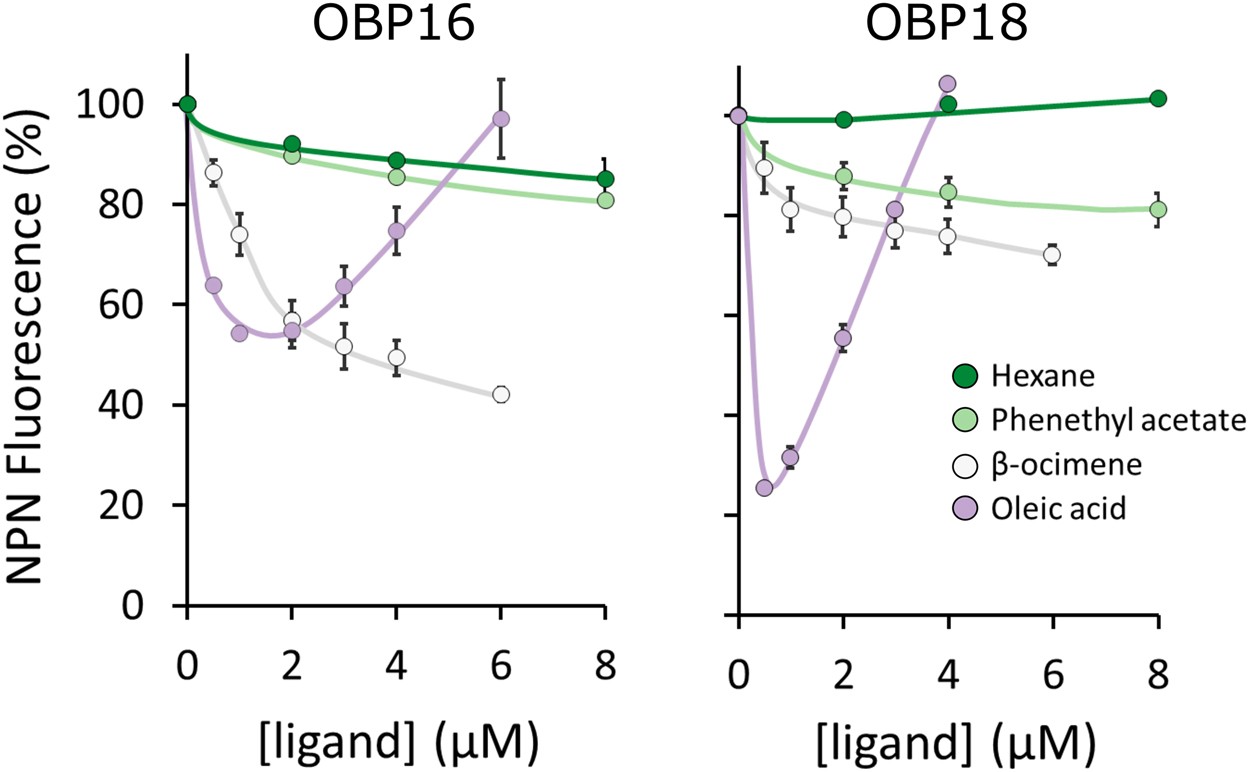

Affinity curves for OBP16 and OBP18. We used an NPN (N-Phenyl-1-naphthylamine) competitive binding assay to measure affinities of β-ocimene, oleic acid, phenethyl acetate, and hexane (negative control). Assays were performed in technical duplicate with 2 µM protein and 2 µM NPN in all cases. Lower NPN fluorescence intensity indicates stronger ligand binding. The high NPN fluorescence intensity for the high oleic acid concentrations is due to the formation of micelles at higher concentrations of the ligands54,55. A 1% solution of β-ocimene, oleic acid, phenethyl acetate, and hexane corresponds to approximately 60 mM, 32 mM, and 63 mM, and 76 mM, respectively. Error bars are standard error of the mean.
