Figure 5
From: Preparation of colourless phosphate glass by stabilising higher Fe[II] in microwave heating

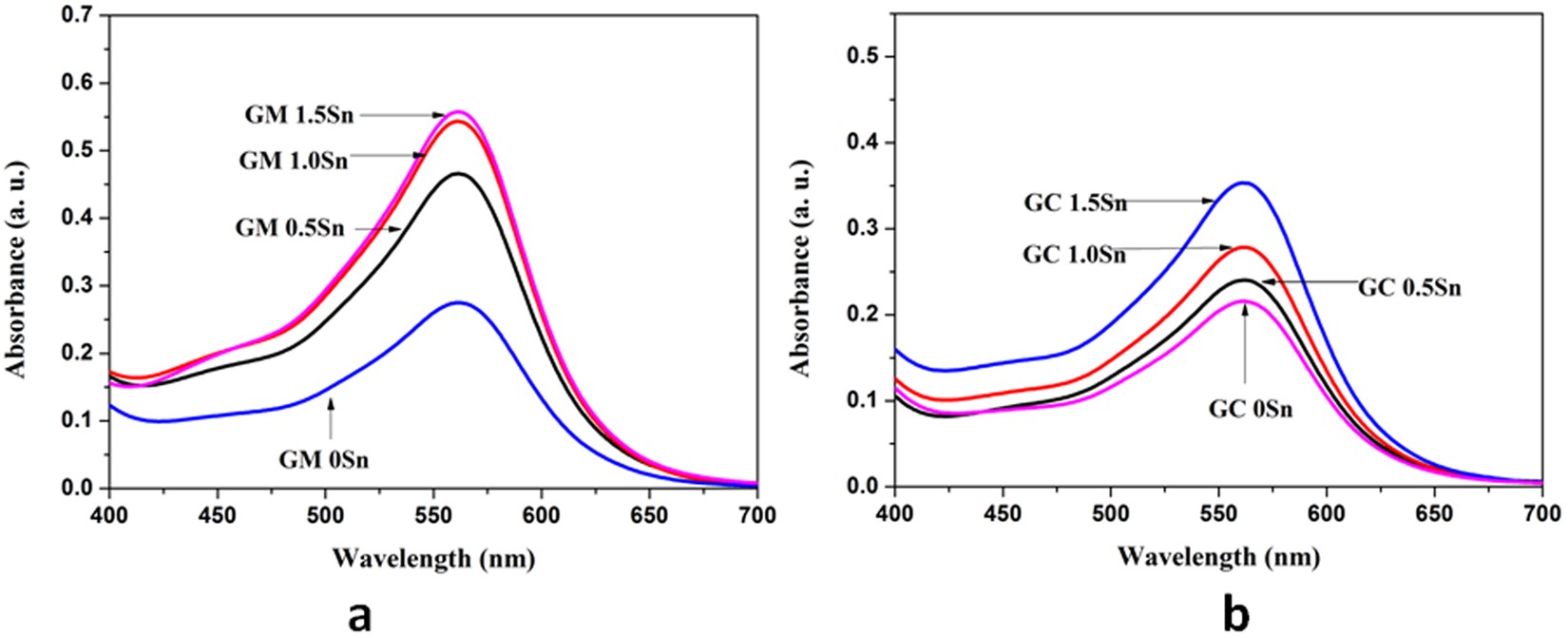

Visible absorbance spectra depicting broad absorbance band centered at 562 nm for Fe2+-Ferrozine complex for the glass containing varying concentration Sn (0 to 1.5 wt.%); (a) MW heating; (b) conventional heating.
