Figure 6 | Scientific Reports

Figure 6

From: Erythromycin leads to differential protein expression through differences in electrostatic and dispersion interactions with nascent proteins

Figure 6

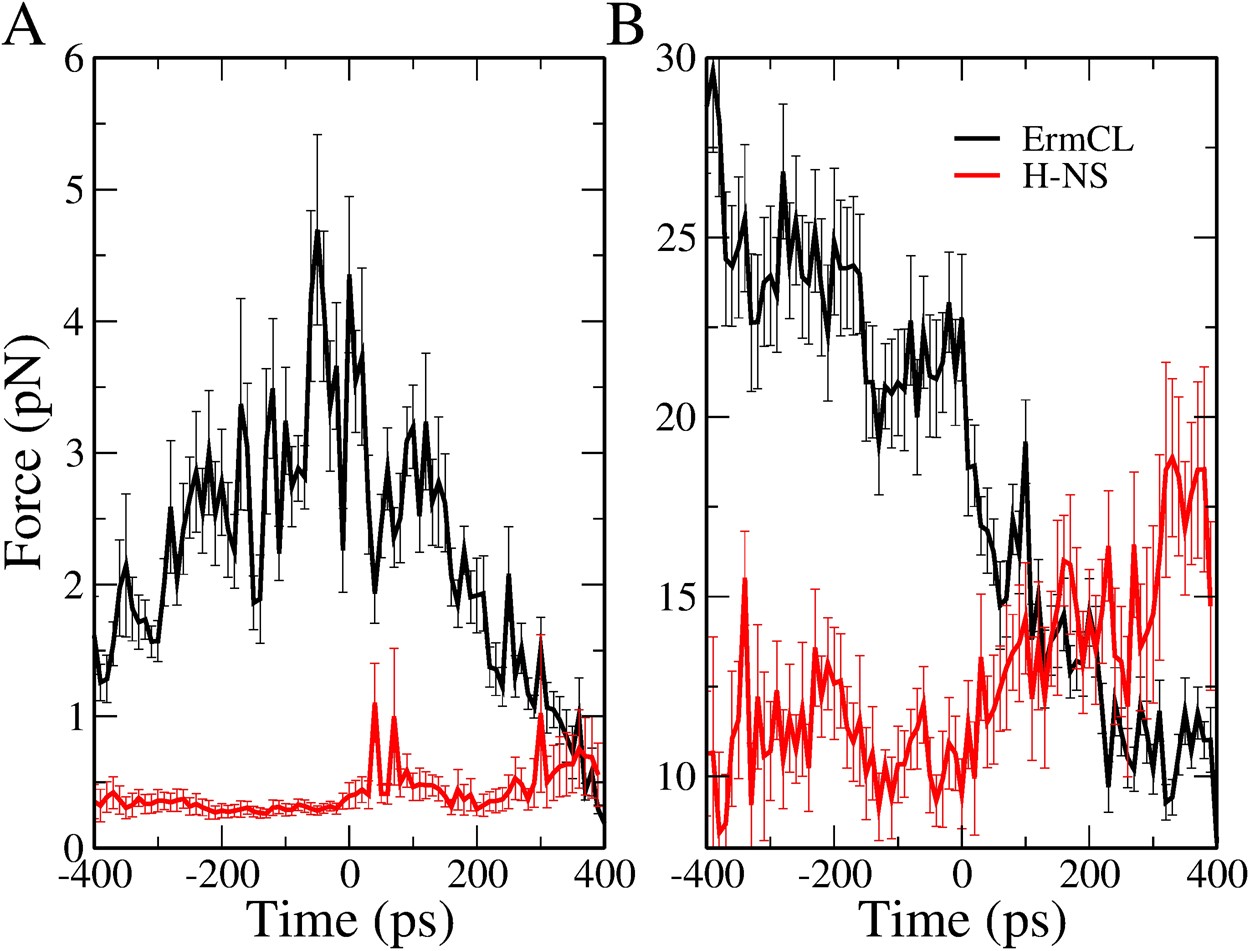

Average interaction force experienced by nascent chain atoms with ERY and the ribosome when we turned on non-bonded parameters one by one residue. (A) Average non-bonded interaction force, per nascent chain atom, between the nascent chain and Erythromycin. (B) Average non-bonded interaction force, per nascent chain atom, between the nascent chains and the ribosome. Error bars represent 95% confidence intervals. Line is to guide the eye and does not represent a model. Note well, the individual trajectory force traces were first aligned such that Fmax occurs at time equal to zero, and then the average across trajectories was calculated.
