From: Impaired photosynthesis and increased leaf construction costs may induce floral stress during episodes of global warming over macroevolutionary timescales

Figure 6

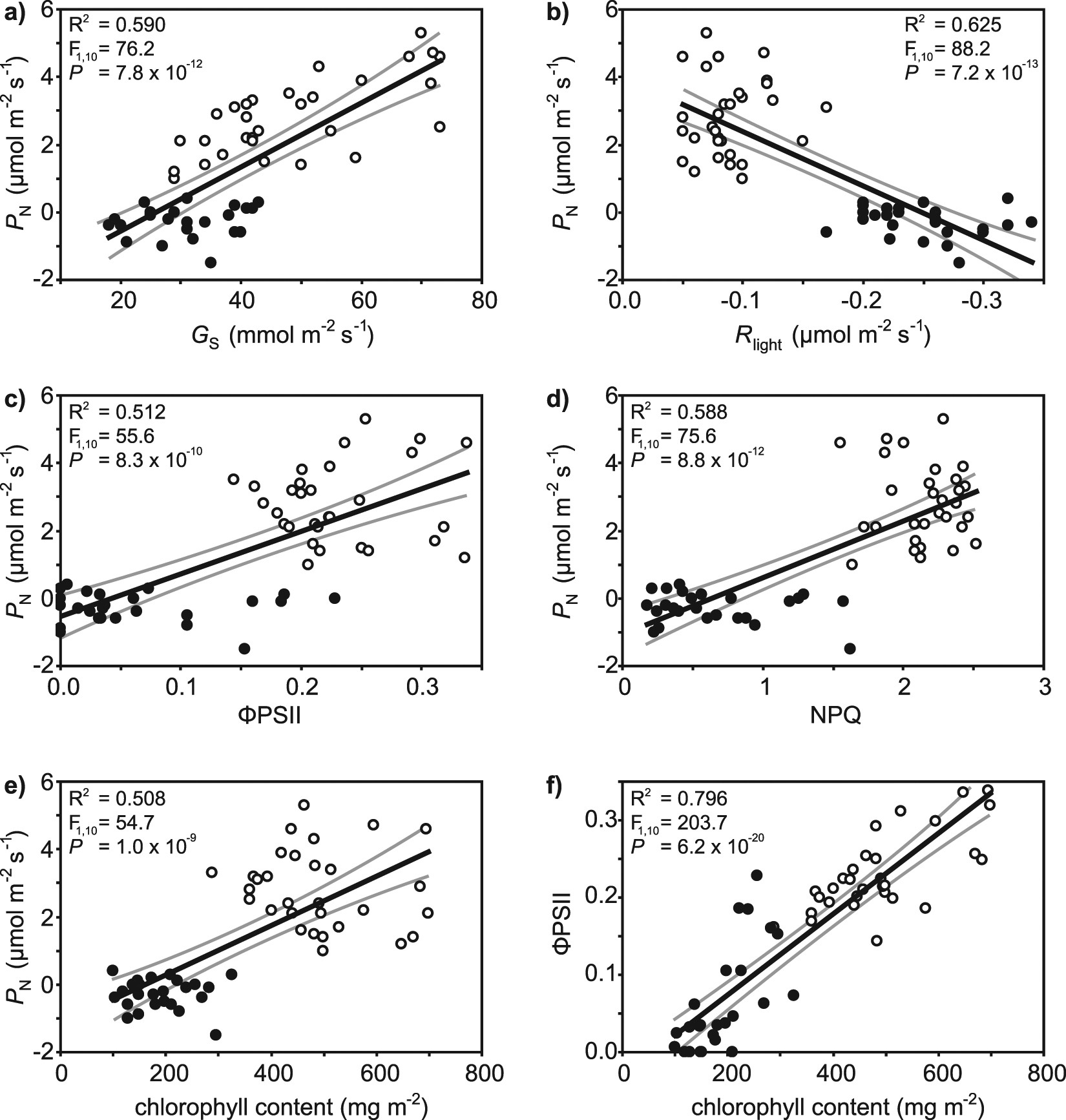

The effect of growth at 25 °C (white fill symbols) and 35 °C (black fill symbols) on correlations between physiological parameters in leaves of Ginkgo biloba: (a) relationship between P N and G s; (b) relationship between P N and R light; (c) relationship between P N and ΦPSII; (d) relationship between P N and NPQ; (e) relationship between P N and foliar chlorophyll content, and; (f) relationship between ΦPSII and foliar chlorophyll content. R2, F and P values indicate the results of linear regression. The central black line indicates the line of best-fit. The grey lines either side of the best fit line indicate 95% confidence intervals of the mean.
