Figure 3 | Scientific Reports

Figure 3

From: Exposure to Phthalate, an Endocrine Disrupting Chemical, Alters the First Trimester Placental Methylome and Transcriptome in Women

Figure 3

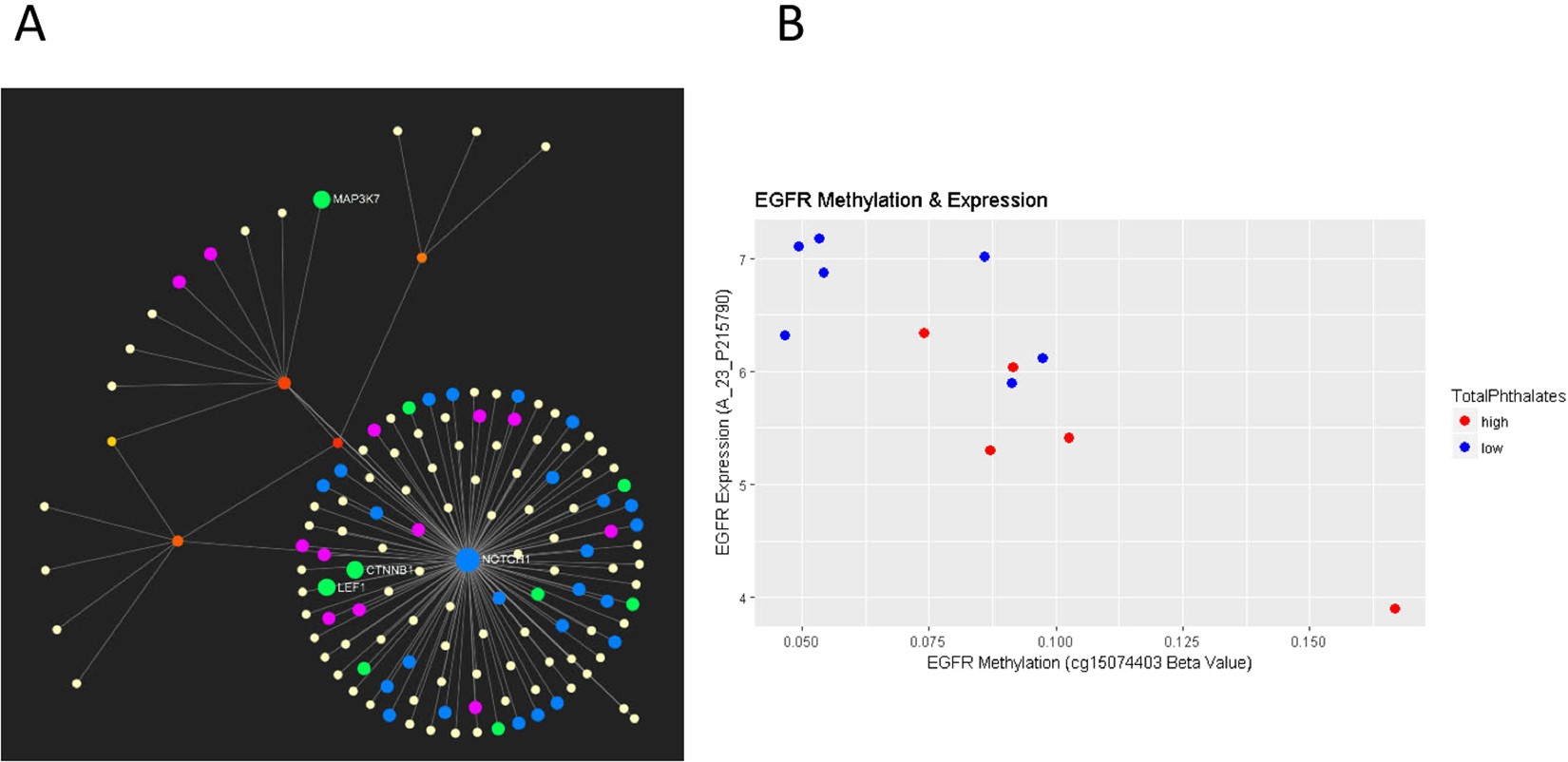

(A) Network evaluation resulting from pathway analysis of methylation-gene expression analysis. (B) Correlation between methylation and expression for EGFR. The EGFR expression by EGFR methylation levels are plotted. The methylation is represented as Beta-value from the cg15074403 probe while the expression value is represented by probeset A_23_P215790. The Pearson correlation between this expression probeset and the cg15074403 M-value is −0.83 (p-value = 0.00076). Subjects with high phthalate exposure are shown in red, while those with low exposure are shown in blue.
