Figure 3
From: Insights into aluminum-tolerance pathways in Stylosanthes as revealed by RNA-Seq analysis

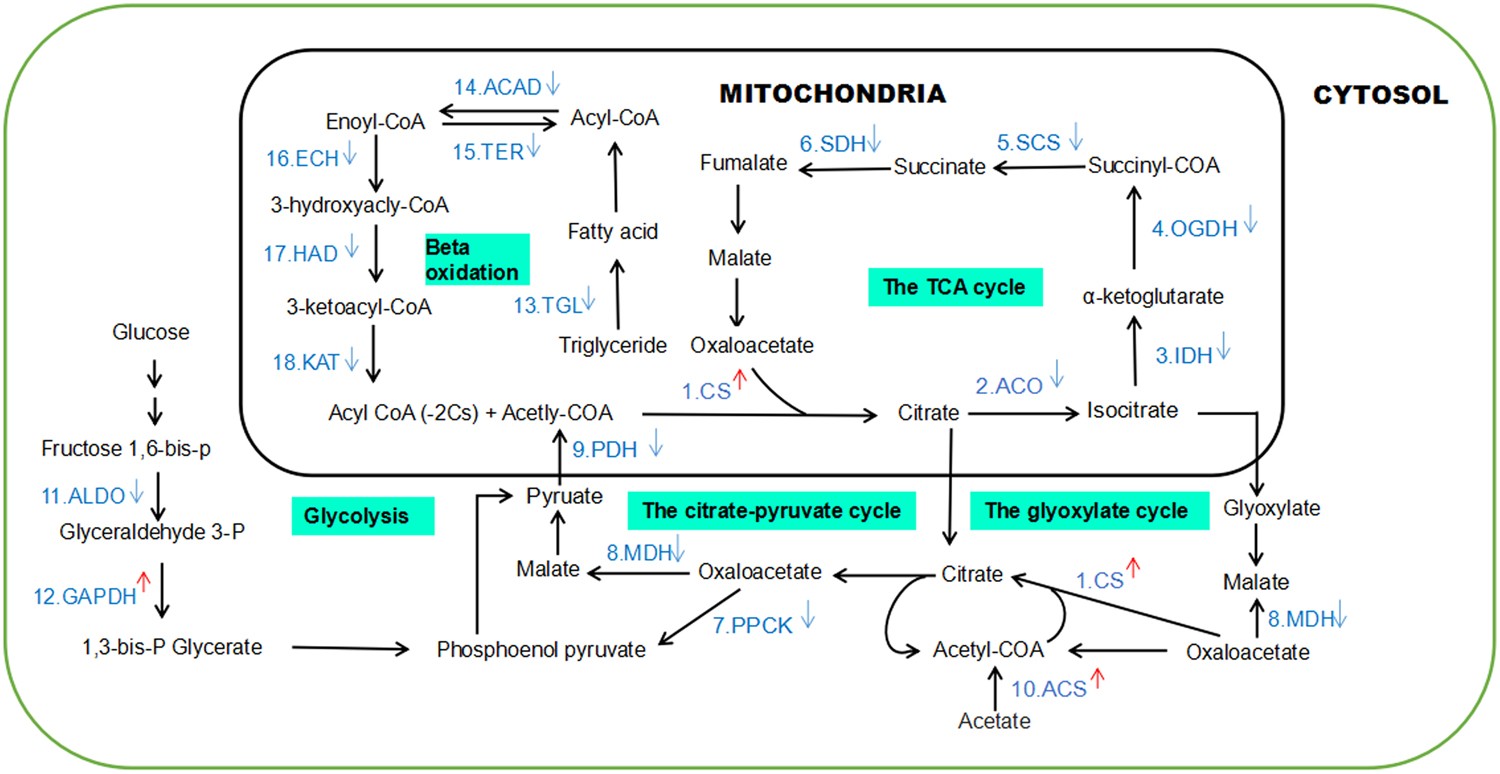

Expression changes of genes involved in citrate metabolism under Al3+ treatment. 1. CS, citrate synthase; 2. ACO, aconitate hydratase; 3. IDH, isocitrate dehydrogenase; 4. OGDH, 2-oxoglutarate dehydrogenase; 5. SCS, succinyl- CoA synthetase; 6. SDH, succinate dehydrogenase; 7. PPCK, phosphoenolpyruvate carboxykinase; 8. MDH, malate dehydrogenase, cytoplasmic; 9. PDH, pyruvate dehydrogenase; 10. ACS, acetyl-coenzyme A synthetase, chloroplastic/glyoxysomal; 11. ALDO, fructose-bisphosphate aldolase; 12. GAPDH, glyceraldehyde-3-phosphate dehydrogenase; 13. TGL, triacylglycerol lipase; 14. ACAD, acyl-CoA dehydrogenase; 15. TER, trans-2-enoyl-CoA reductase, mitochondrial; 16. ECH, enoyl-CoA hydratase; 17. HAD, 3-hydroxyacyl-CoA dehydrogenase; 18. KAT2, 3-ketoacyl-CoA thiolase 2. Significant difference between treatments is indicated with ↑ (increase in expression) and ↓ (decrease in expression).
