From: Alternative polyadenylation drives genome-to-phenome information detours in the AMPKα1 and AMPKα2 knockout mice

Figure 1

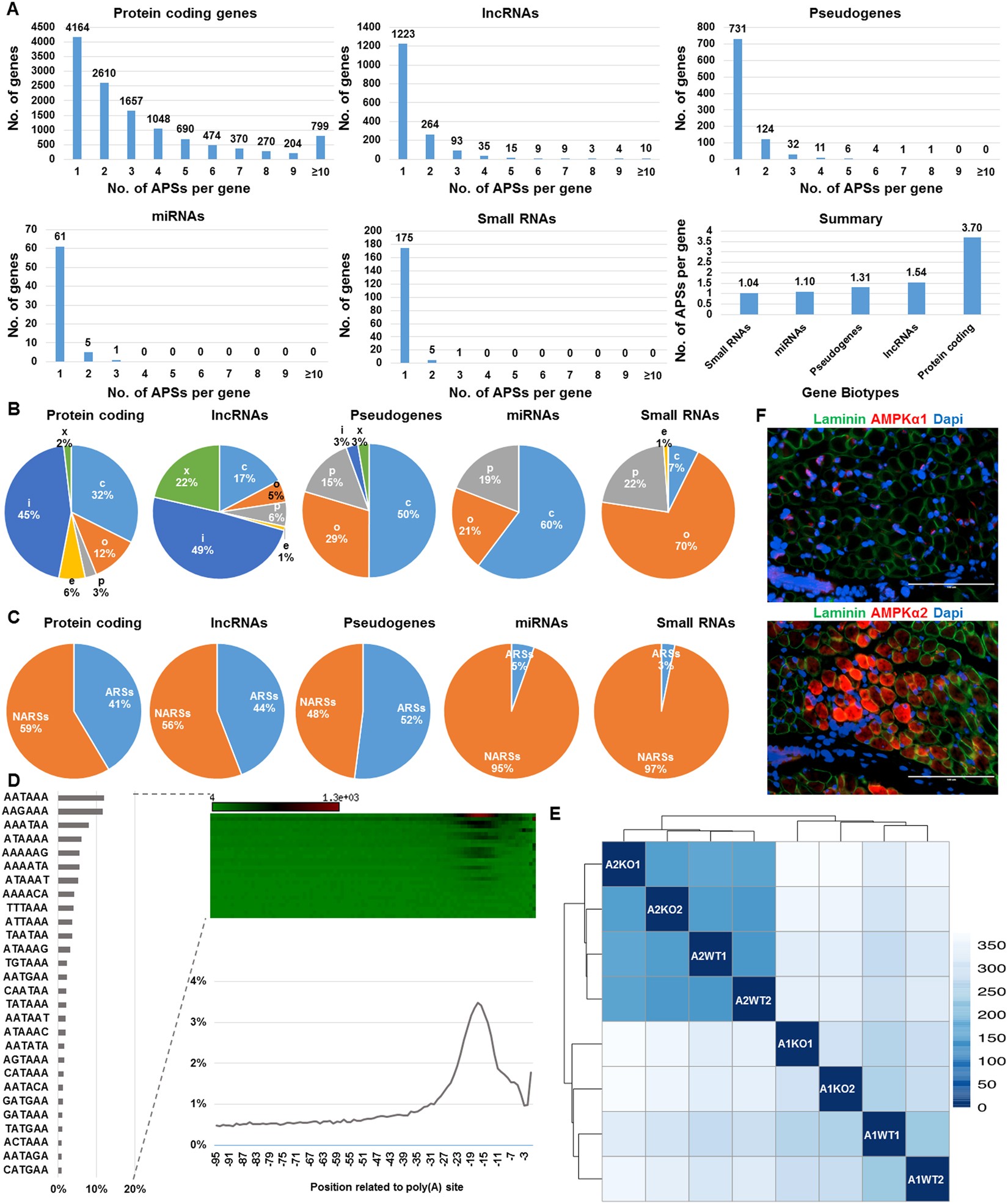

Characterization of APSs in Mice. Effects of gene biotypes on number of APSs per gene (A), within-gene mapping locations with 6 class codes: c, e, i, o, p and x (B) and genomic features with ARSs (A rich stretches) and NARSs (non A rich stretches) (C). (D) PolyA signal distributions in mouse. (E) Heat map and dendrogram of sample-to-sample distances among 8 libraries based on APS profiles. Two KO and two WT mice were used for each case in the present study. (F) Expression of both AMPKα1 and AMPKα2 in skeletal muscle of WT mice at 10 days of age.
