From: Comparative genomics provides insights into the lifestyle and reveals functional heterogeneity of dark septate endophytic fungi

Figure 4

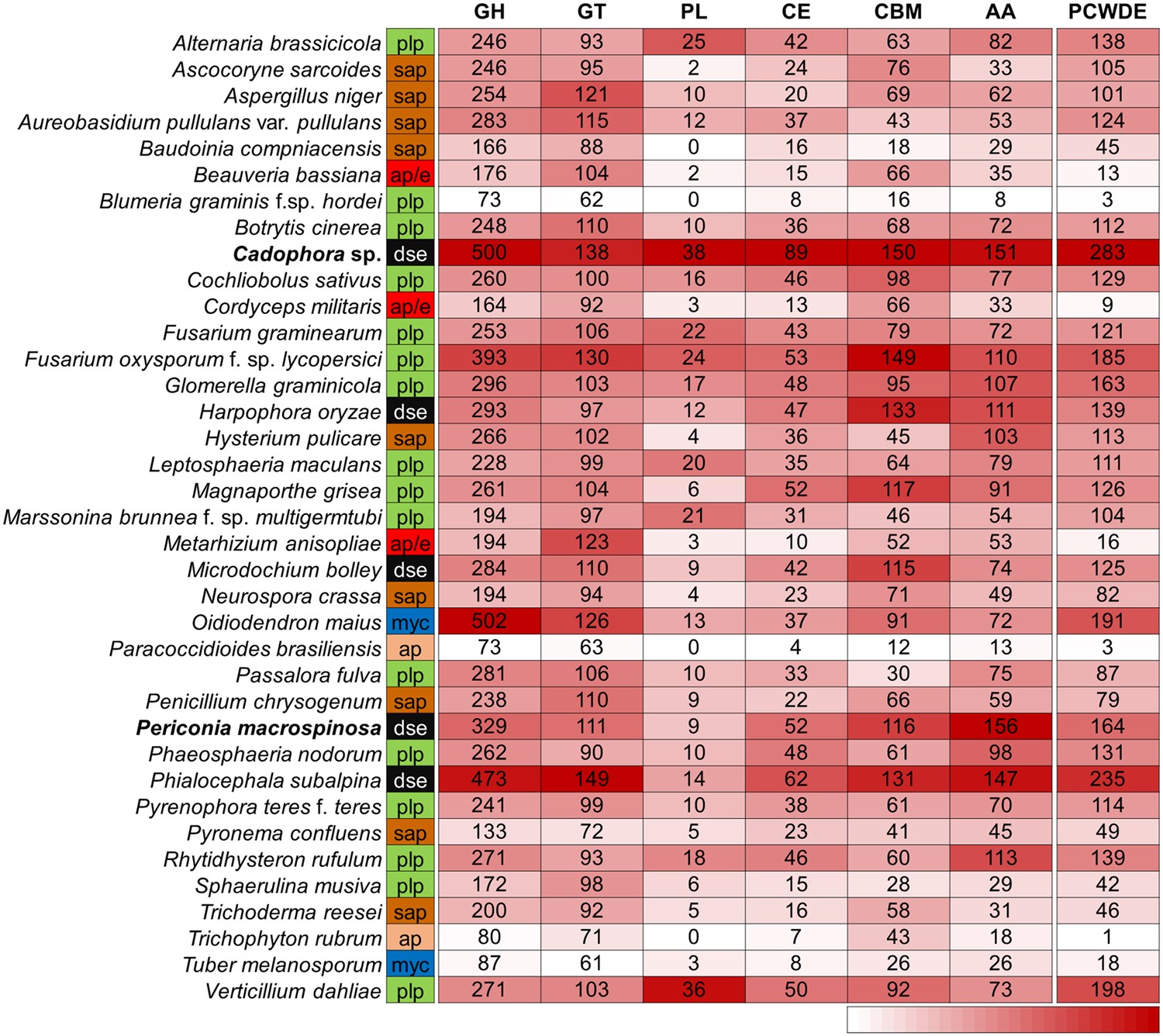

Number of genes encoding carbohydrate active enzymes (CAZymes) and plant cell wall degrading enzymes (PCWDE) in Cadophora sp., Periconia macrospinosa and other 35 fungi including three further DSE species. Major CAZyme classes are shown separately, including Glycoside Hydrolases (GH), Glycoside Transferases (GT), Polysaccharide Lyases (PL), Carbohydrate Esterases (CE), Carbohydrate-Binding Modules (CBM), and Auxiliary redox enzymes (AA). After each species name, its type of lifestyle is indicated as follows: red (ap/e; animal pathogens/endophytes), brown (sap; saprotrophs), green (plp; plant pathogens), black (dse, dark septate endophytes), blue (myc; mycorrhizal fungi), or pink (ap; animal pathogen). For each class of enzyme, white-to-red shading corresponds to lower to higher copy numbers. For detailed information on CAZymes copy numbers see Supplementary Table S4.
