Figure 5

From: Revealing the nature of morphological changes in carbon nanotube-polymer saturable absorber under high-power laser irradiation

Figure 5The alt text for this image may have been generated using AI.

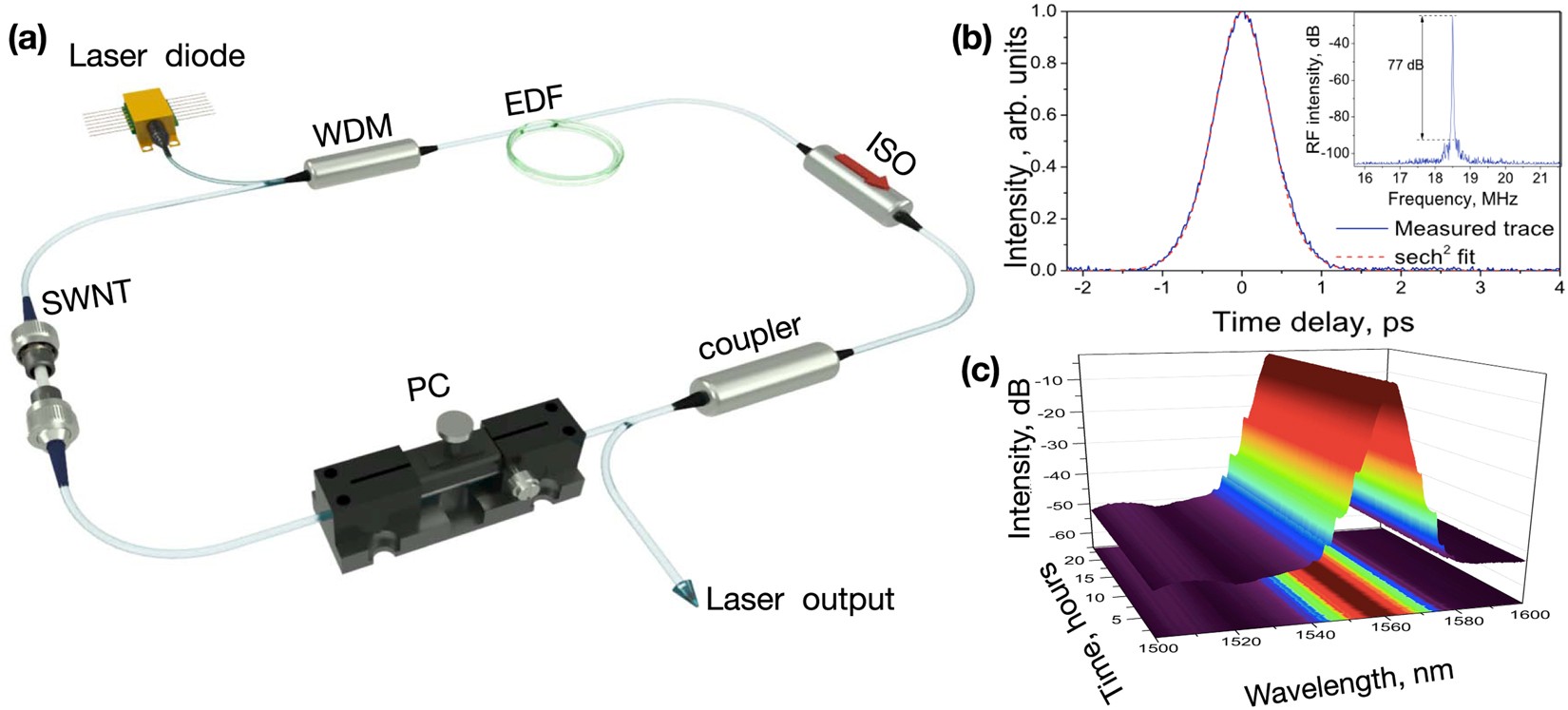

(a) Schematic setup of the ring Erbium-doped SWNT mode-locked fibre laser and its output parameters (b) autocorrelation trace (inset). (c) Output spectrum evolution during 24-hour continuous operation. Inset: The radio-frequency spectrum at the fundamental frequency and recorded with 6 MHz span.
