From: A traditional evolutionary history of foot-and-mouth disease viruses in Southeast Asia challenged by analyses of non-structural protein coding sequences

Figure 3

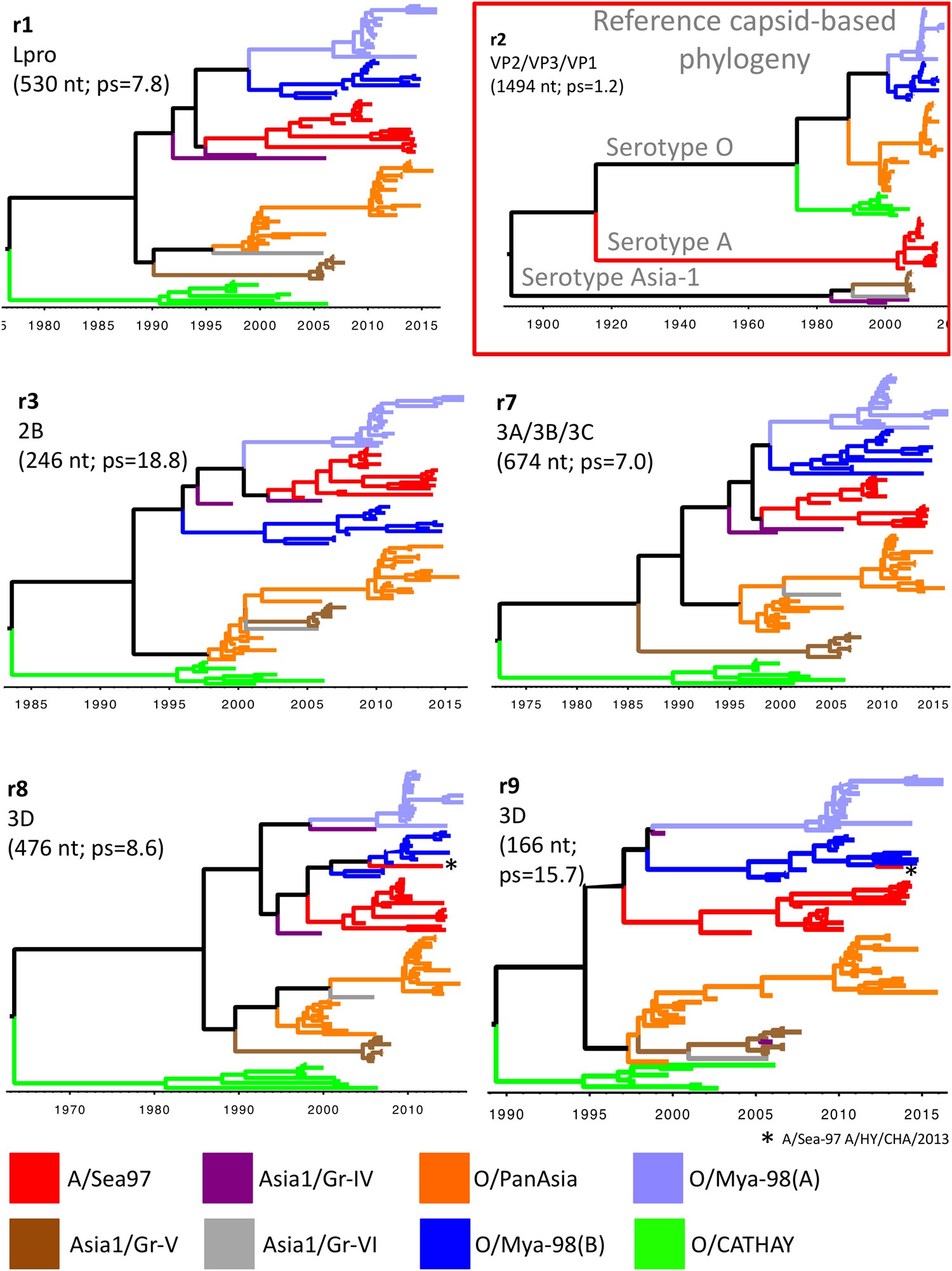

Maximum clade credibility trees constructed for recombination-free regions r1, r2, r3, r7, r8 and r9. The classification of lineages, topotypes and serotypes are defined by the traditional phylogeny grouping of viruses by their structural proteins coding regions (r2). Color-coding of the tree branches is based on this r2 classification. The topology of the phylogenetic trees based on the non-capsid coding sequence shows a close relationship between the O/Mya-98 and A/Sea-97 lineages, and an independent evolution of the viruses belonging to the O/CATHAY lineage. Recent recombinant viruses are indicated by an asterisk (*).
