Figure 5
From: PrismPlus: a mouse line expressing distinct fluorophores in four different brain cell types

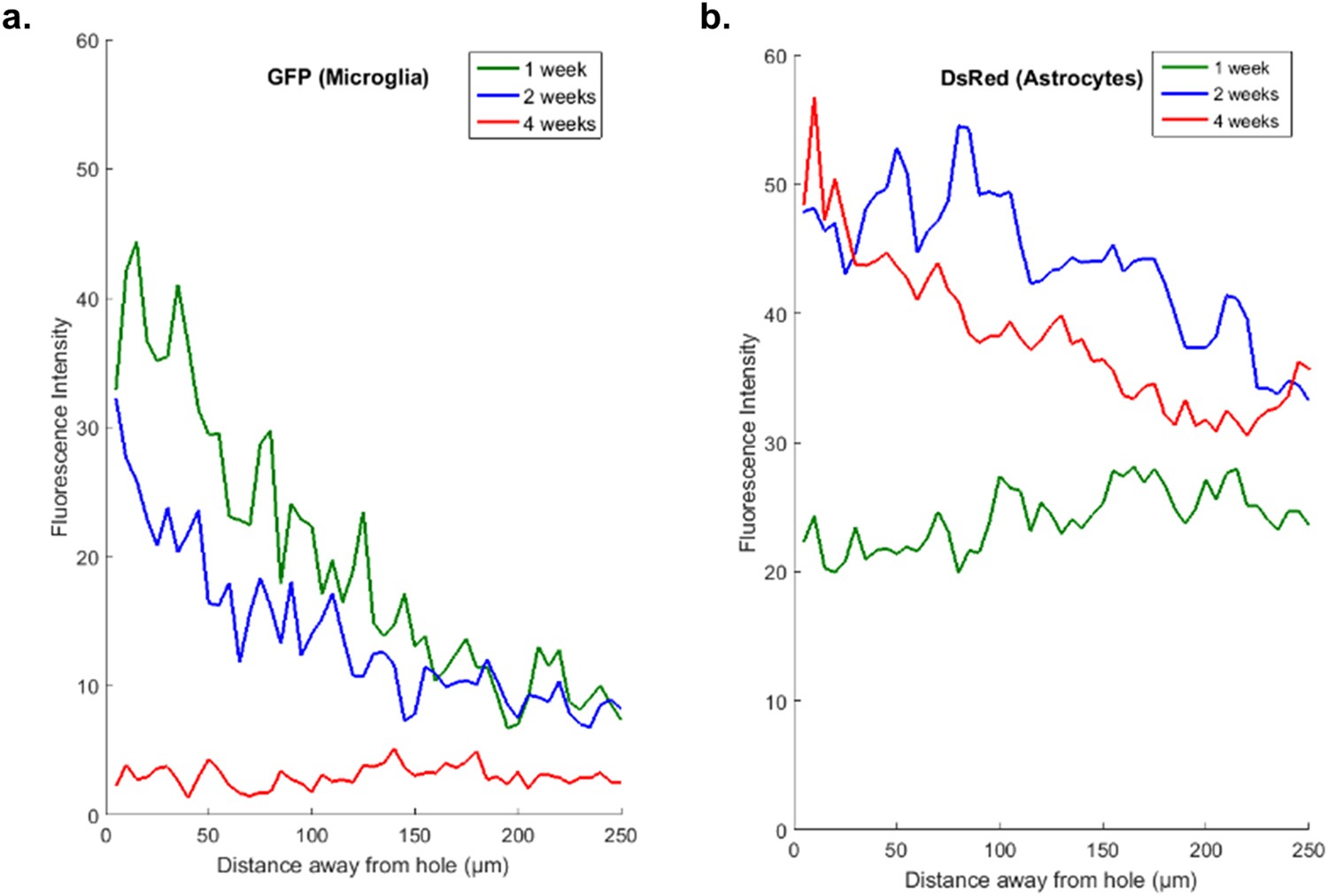

Fluorescence intensity profile of GFP expressing activated microglia/macrophages (a) and DsRed expressing astrocytes (b) as a function of distance (away from the ellipse drawn in Fig. 4) in PrismPlus mice implanted with “Michigan type” silicon device for 1 week (green), 2 weeks (blue) and 4 weeks (red). GFP and DsRed channels from images in Fig. 4 were used to generate the intensity profile.
