Figure 1

From: Accurate estimation of a phase diagram from a single STM image

Figure 1

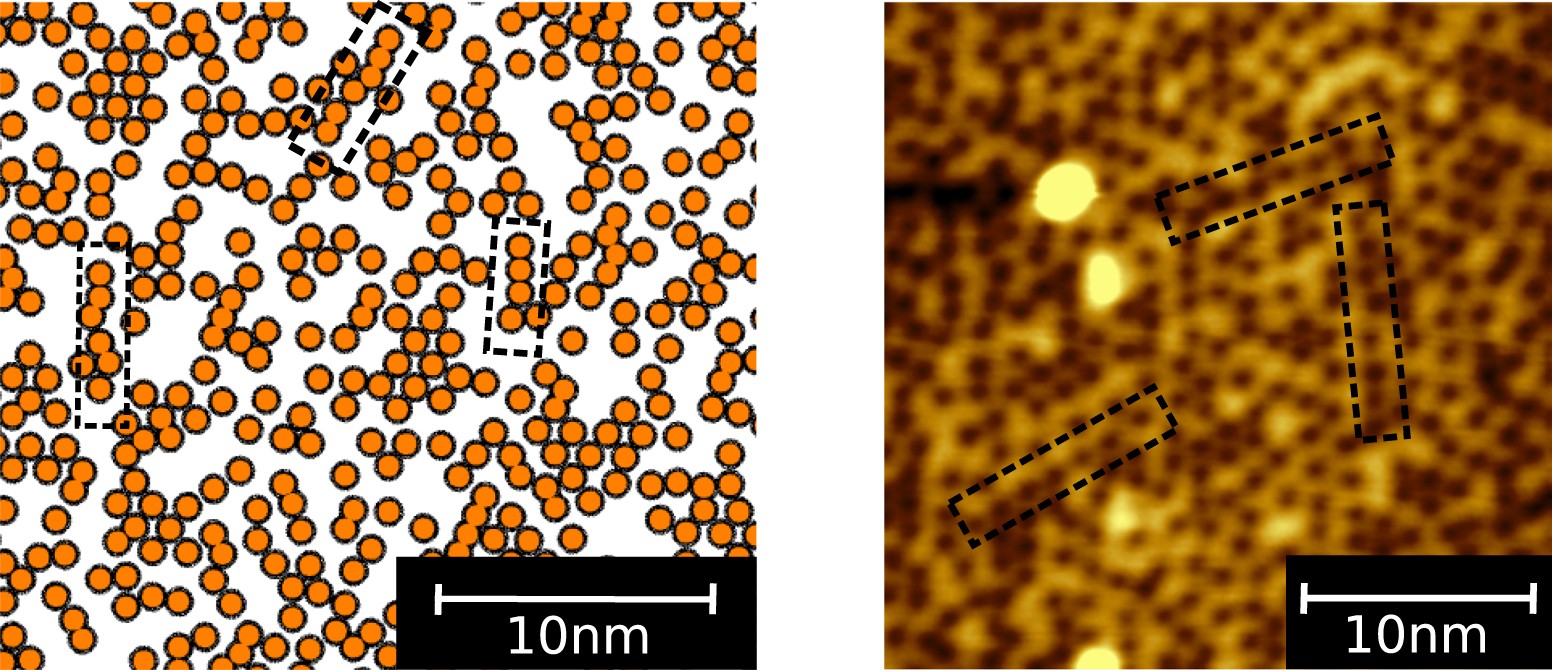

(Left) A snapshot of a Monte Carlo simulation at x = 0.0511 and T = 773 K. For clarity, only the Zn–Y clusters are shown. (Right) A typical STM image of the distribution of Zn–Y clusters in the stacking fault interface. Individual Zn–Y clusters are imaged as dark spots under positive bias voltage (empty-state image). In both images, chain-like arrangements of clusters are denoted by broken-line squares.
