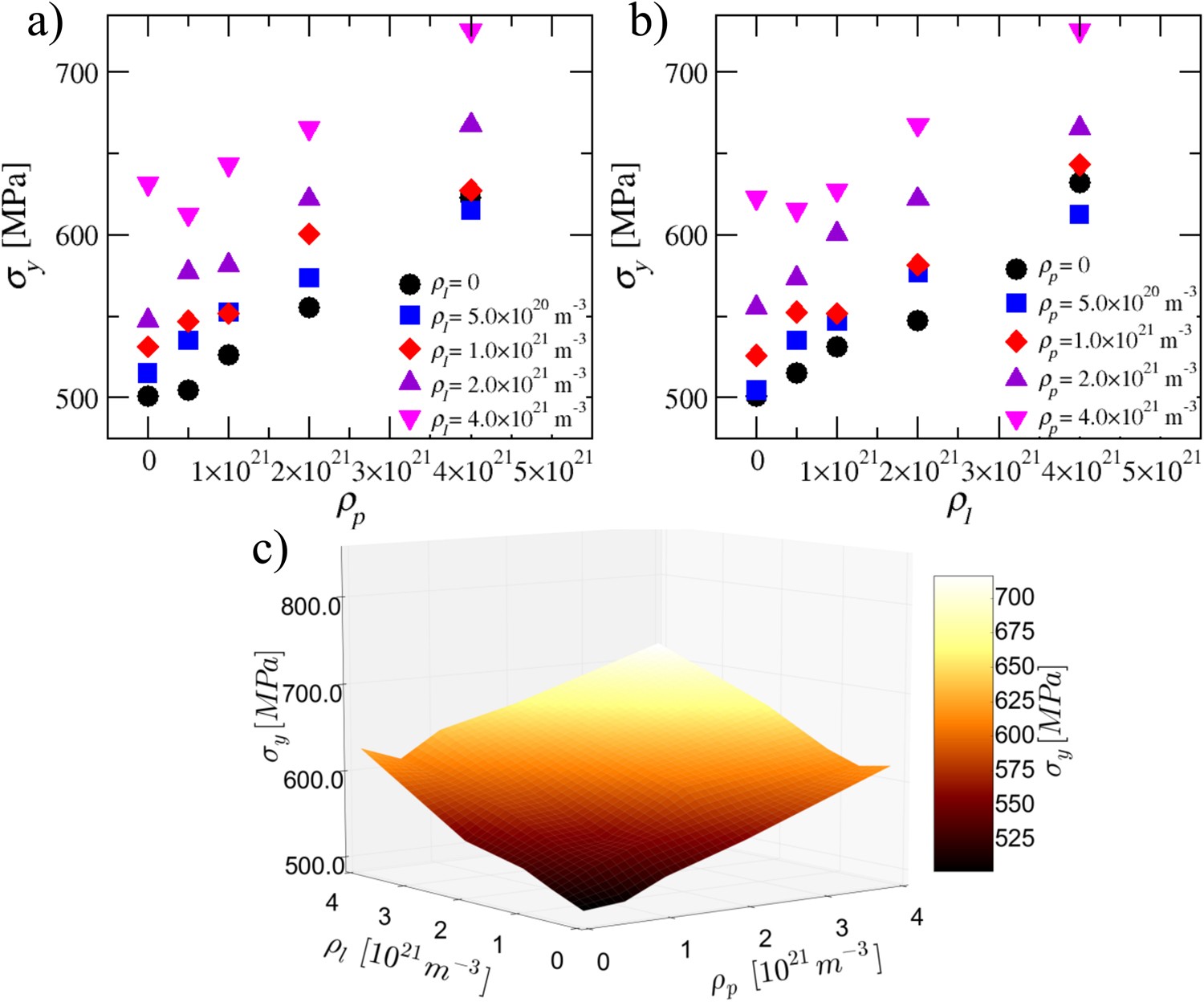

Figure 8
From: Effects of precipitates and dislocation loops on the yield stress of irradiated iron
(a) Yield stress as a function of precipitate density for different loop densities. (b) Yield stress as a function of loop density for different precipitate densities. (c) A 3D surface plot of yield stress as a function of both loop and precipitate densities. Linear interpolation was used between the datapoints. Precipitate size parameter is R p  = 5 nm and the loop radius is r l  = 5 nm.
