Figure 1

From: Extensive gene rearrangements in the mitochondrial genomes of two egg parasitoids, Trichogramma japonicum and Trichogramma ostriniae (Hymenoptera: Chalcidoidea: Trichogrammatidae)

Figure 1

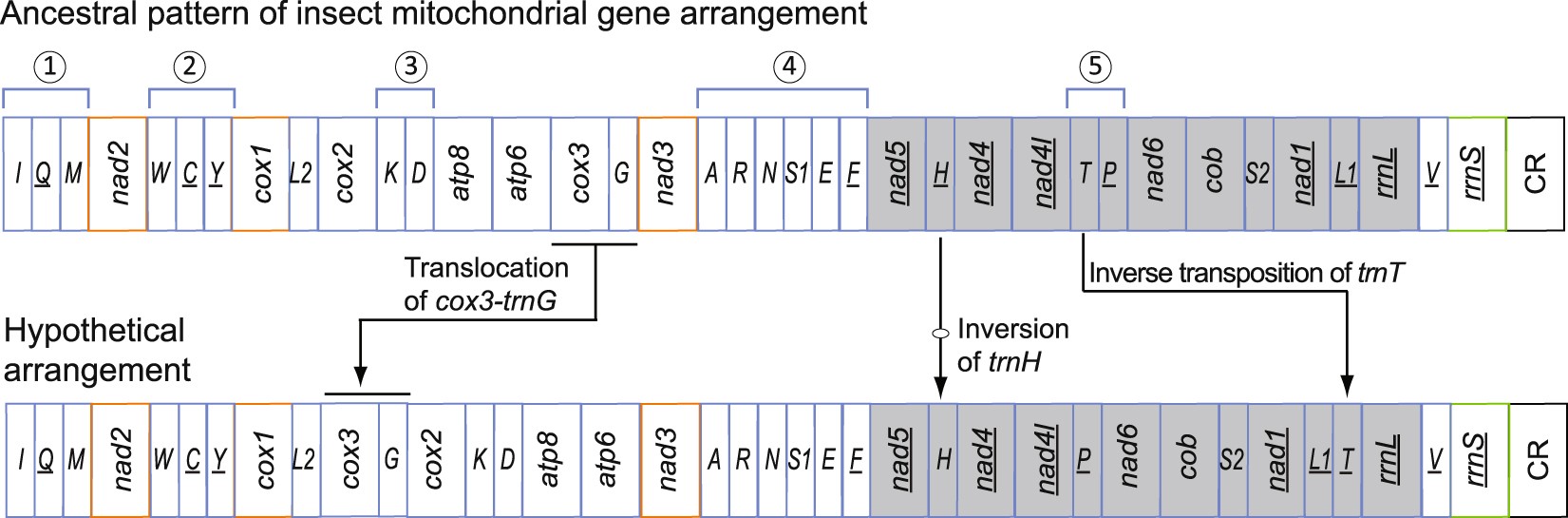

Ancestral arrangement of insect mitochondrial genes and types of gene rearrangement. The numbers 1 to 5 in circular indicate the five tRNA clusters. Transposition, inversion, inverse transposition were illustrated by comparing the ancestral pattern of insect mitochondrial gene arrangement and a hypothetical pattern.
