Figure 4

From: Extensive gene rearrangements in the mitochondrial genomes of two egg parasitoids, Trichogramma japonicum and Trichogramma ostriniae (Hymenoptera: Chalcidoidea: Trichogrammatidae)

Figure 4

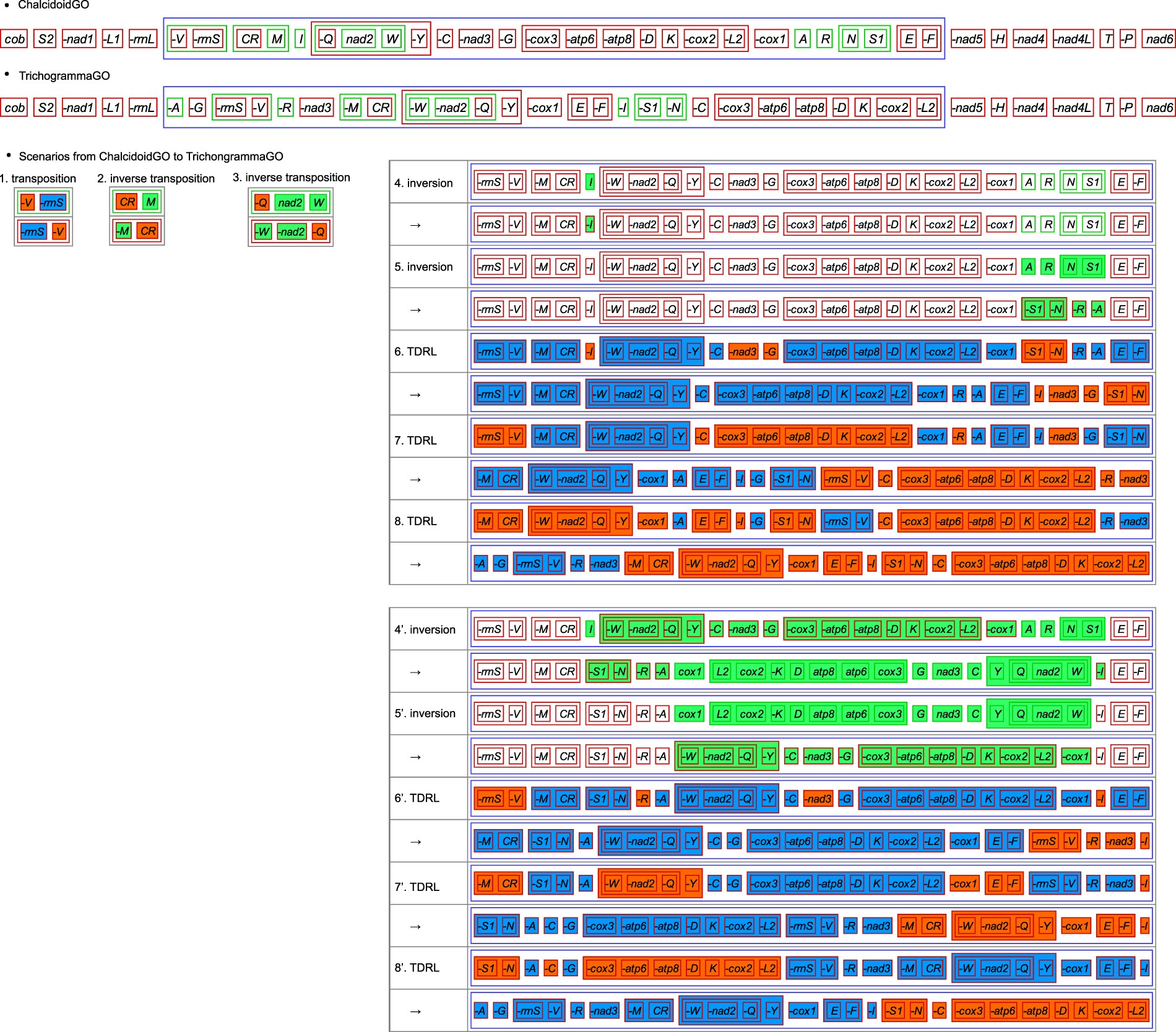

Evolution of gene order in mitochondrial genomes Trichogramma explained by software CREx. In total eight rearrangement operations occurred from presumed ancestral gene order of Chalcidoidea (ChalcidoidGO) to form the derived gene order of Trichogramma (TrichogrammaGO). Two alternative sets of scenarios were found, i.e. operations 4–8 and operations 4′–8′.
