Figure 2
From: Recruitment Drives Spatial Variation in Recovery Rates of Resilient Coral Reefs

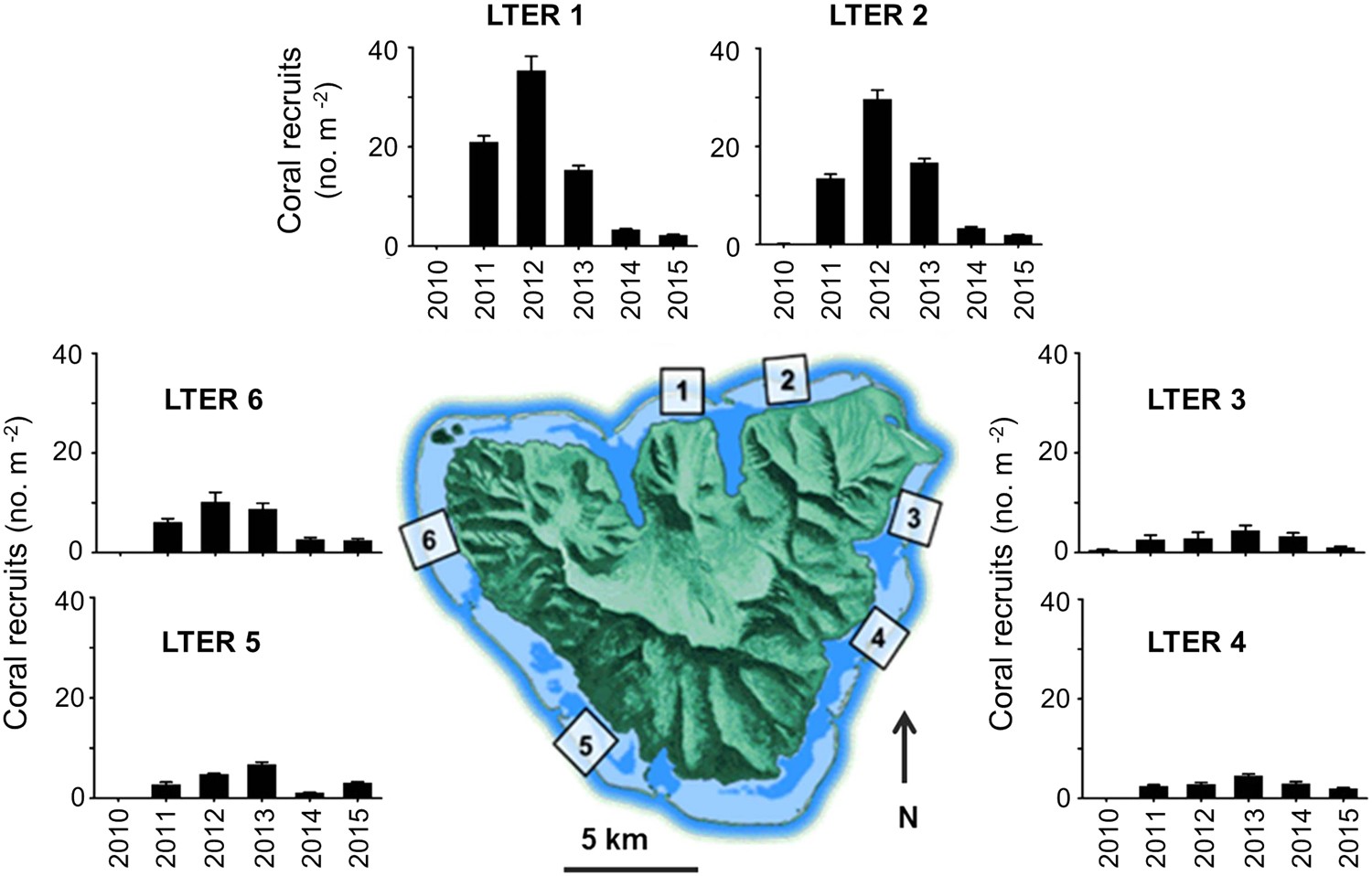

Spatial pattern in mean (±SE) density of coral recruits (colonies ≤3 cm diameter) at 10 m depth around Moorea based on diver surveys of 25 m2 plots. The magnitude of coral recruitment following 2010 varied sharply among sites, and the pattern mirrors the pattern of variation in recovery of live coral cover (Fig. 1). Map of Moorea was based on an original image (ISS006-E-39837) provided courtesy of the Earth Science and Remote Sensing Unit, NASA Johnson Space Center (https://eol.jsc.nasa.gov) and was modified using Adobe Photoshop Elements v14.1 and Microsoft PowerPoint 2016.
