Figure 5
From: Precisely controlled fabrication, manipulation and in-situ analysis of Cu based nanoparticles

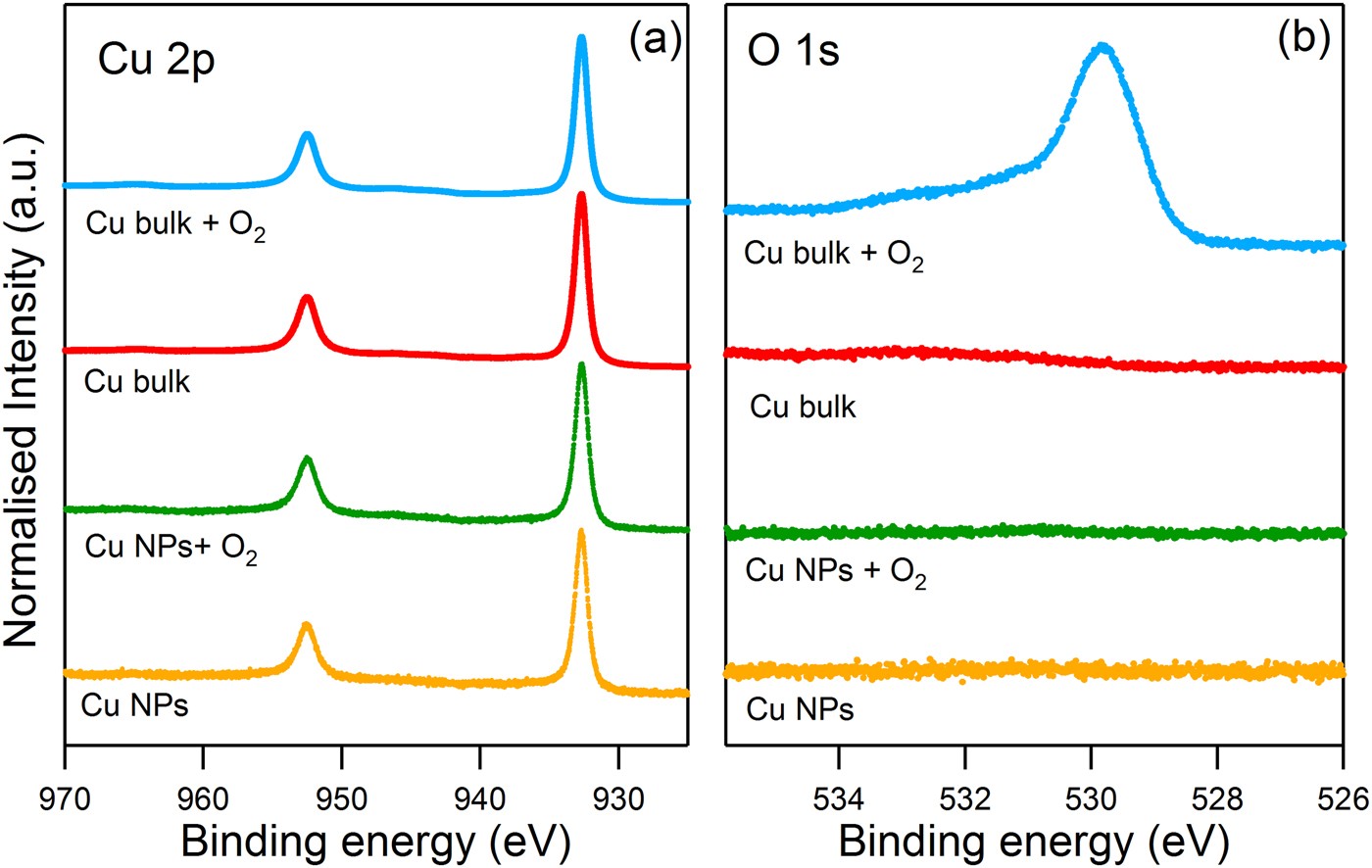

(a) Cu 2p and (b) O 1 s core level XPS spectra of Cu NPs as-deposited (yellow), after O2 treatment in ANA module (green), UHV cleaned Cu bulk (red) and Cu bulk after the same O2 treatment (blue).
