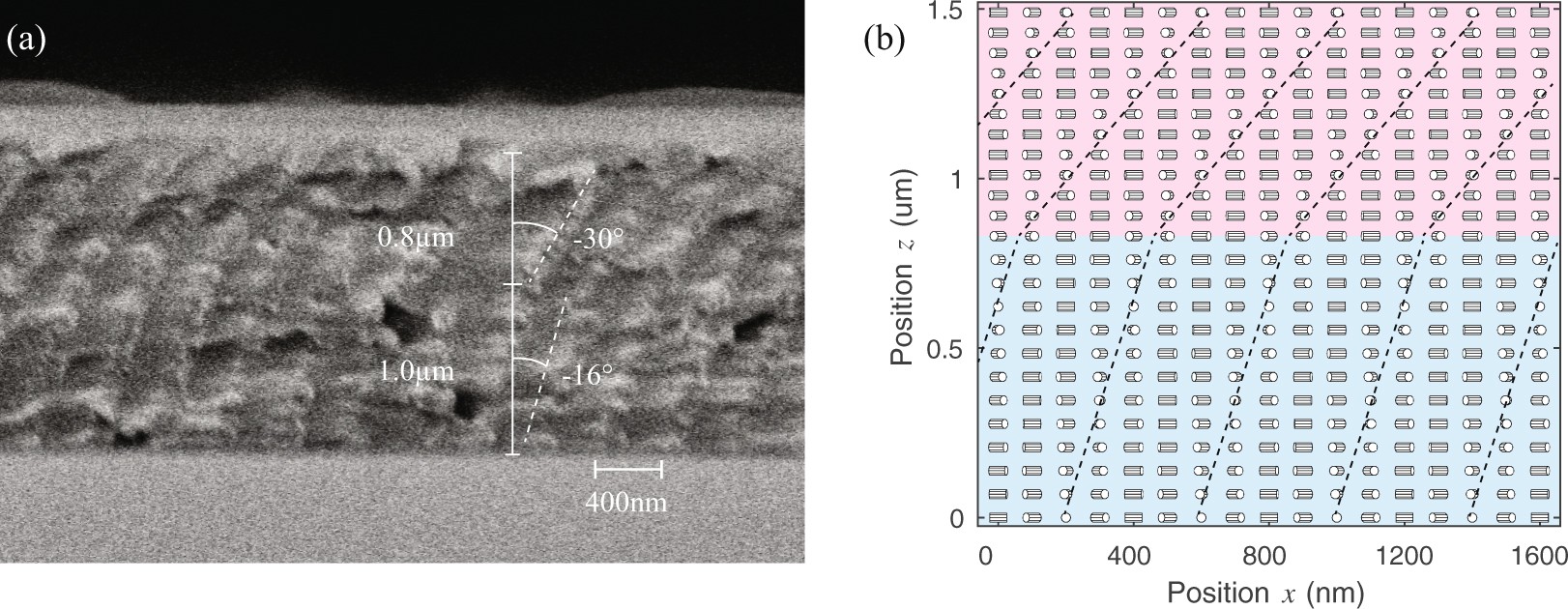

Figure 3

Structure of the two-slant Bragg PG: (a) SEM micrograph of fabricated sample, and (b) calculated director profile of the optimal solution (shown with equal XY aspect ratio). Dashed lines indicate iso-orientation “planes” within each period, corresponding to the each sublayer slant.
