Figure 4
From: Transcriptomic integration of D4R and MOR signaling in the rat caudate putamen

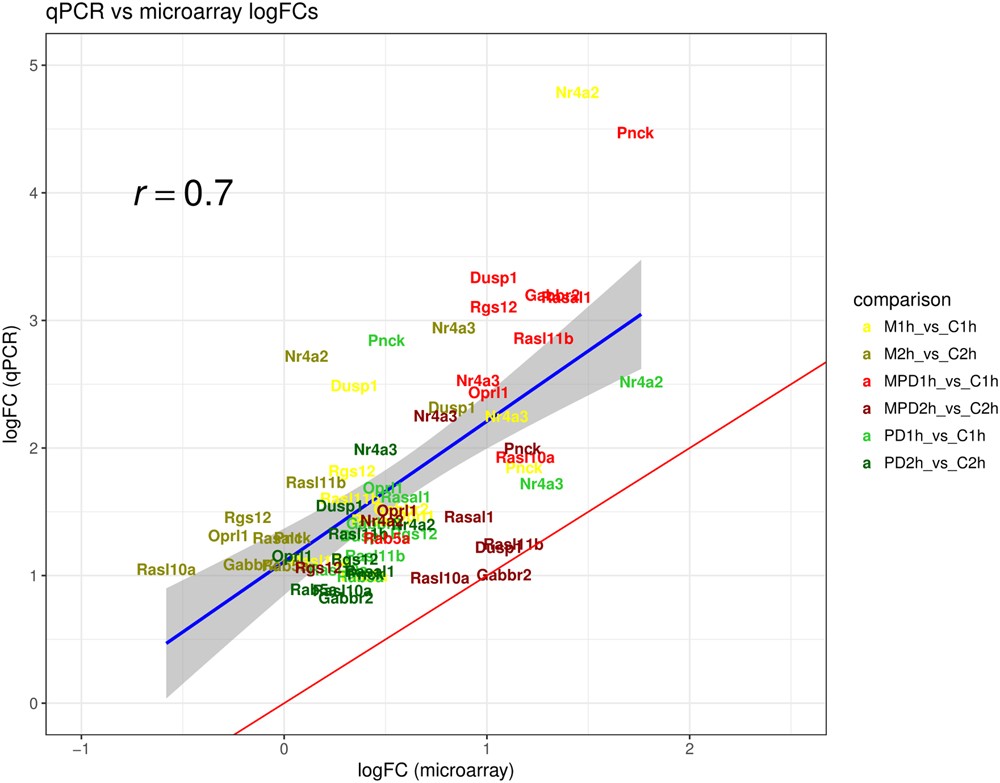

Results of the technical validation by qRT-PCR. Scatterplot of the logFC-s (log2Fold-change) obtained with microarrays and with qRT-PCR (qPCR) for the 11 genes included in the validation across 6 treatment vs control comparisons. The red line is the perfect validation line (x = y), that is, the line where genes would lie if their logFC-s were equal for both platforms. The blue line represents the association between the logFC profiles from each platform as given by a linear regression, with the shadow reflecting the 95% confidence interval.
