From: Multi-beam array stitching method based on scanning Hartmann for imaging quality evaluation of large space telescopes

Figure 10

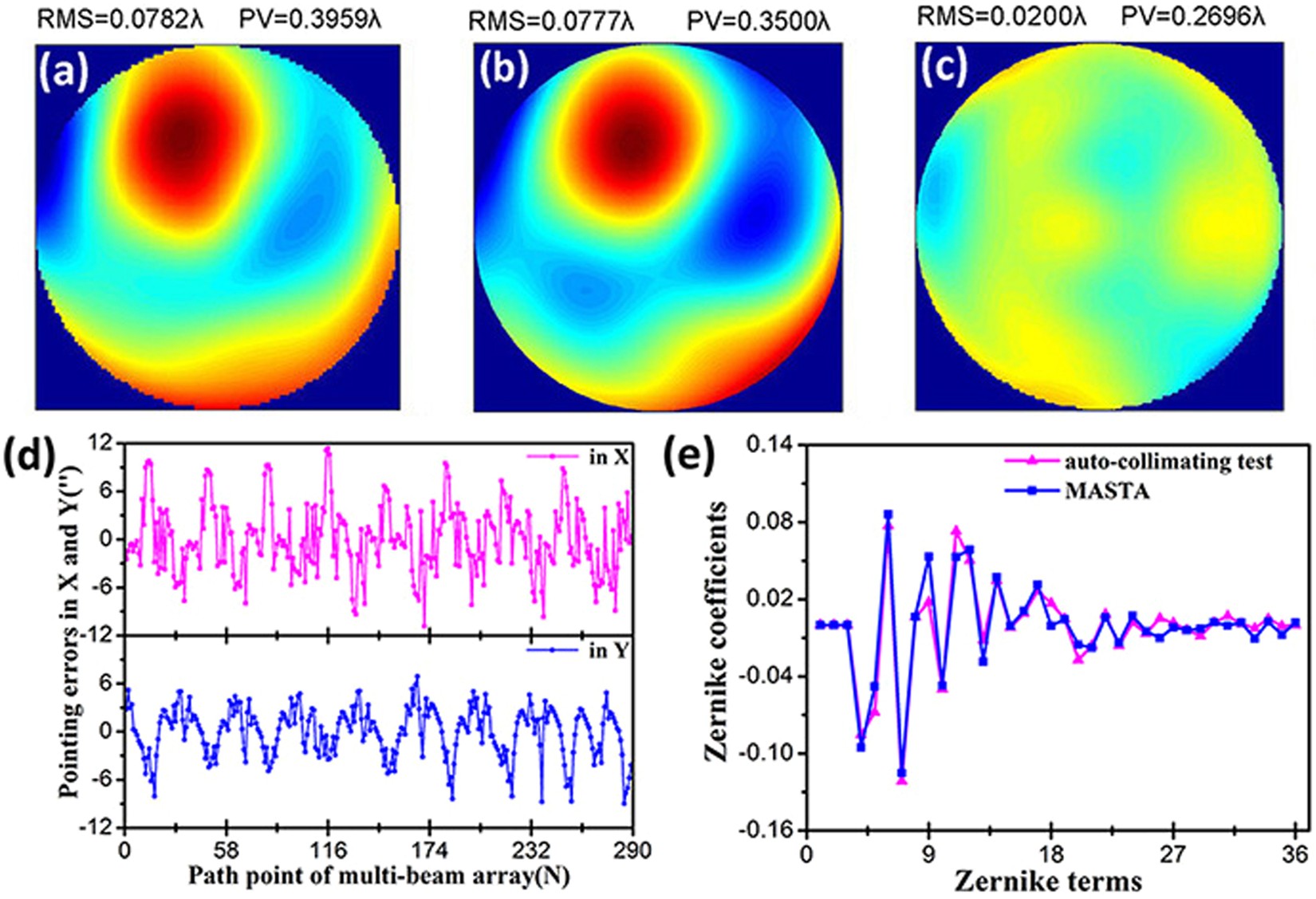

(a) WFE map measured with the MASTS, (b) WFE map of the first 37 Zernike modes measured by the auto-collimating test, (c) WFE difference between the auto-collimating test and the MASTS, (d) line and scatter graphs for pointing errors of the collimator array with changing path point, (e) coefficients of the Zernike terms for the auto-collimating test and the MASTS.
