Figure 6

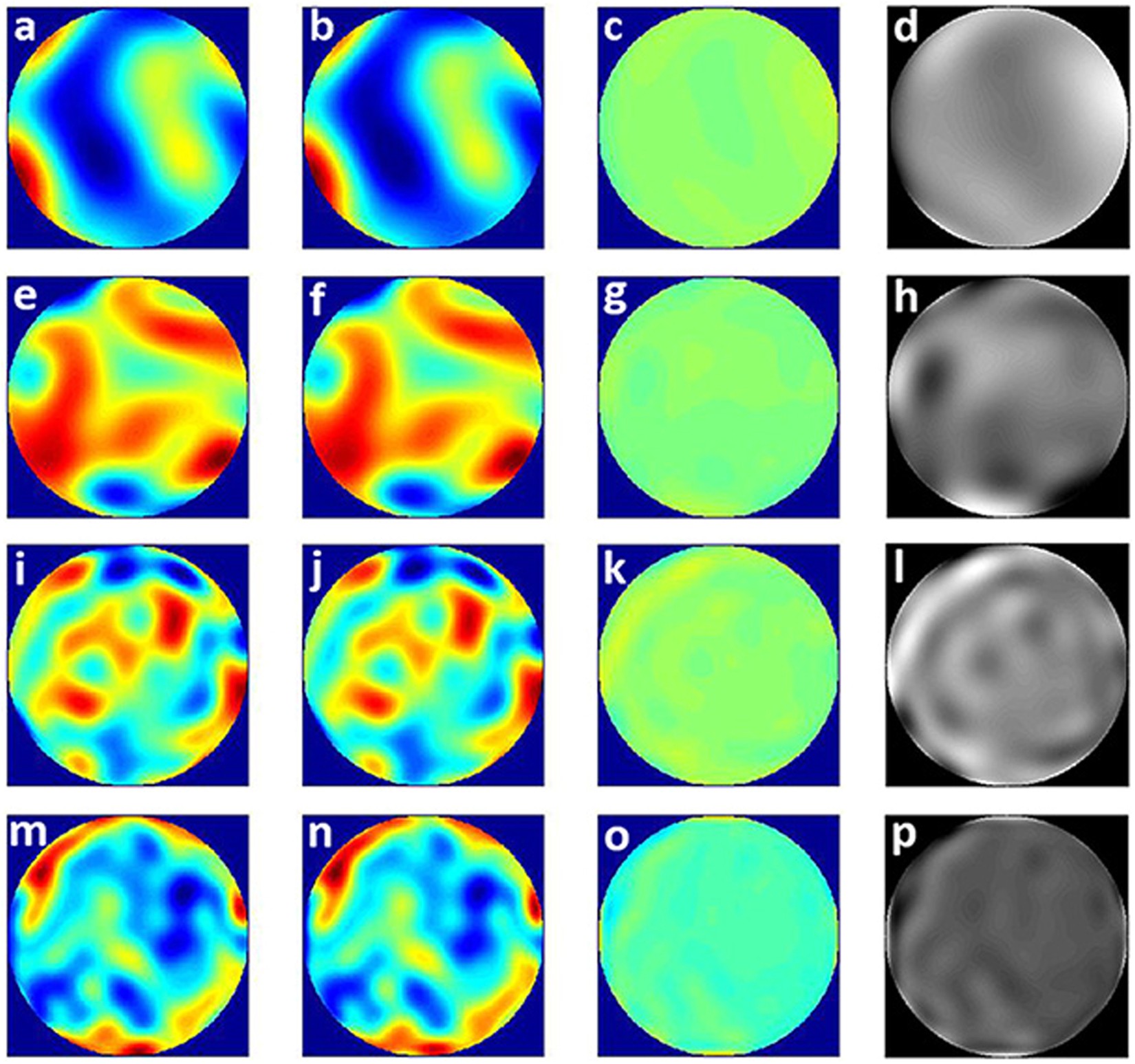

(a) Injected WFE map using 45 Zernike modes, (b) WFE map for the simulated test based on 45 Zernike modes, (c) difference between WFE (a,b). (e) Injected WFE map using 91 Zernike modes, (f) WFE map for the simulated test based on 91 Zernike modes, (g) difference between WFE (e,f). (i) Injected WFE map using 153 Zernike modes, (j) WFE map for the simulated test based on 153 Zernike modes, (k) difference between WFE (I,j). (m) Injected WFE map using 231 Zernike modes, (n) WFE map for the simulated test based on 231 Zernike modes, (o) difference between WFE (m,n). (d,h,l) and (p) represent the grey scale maps of WFE (c,g,k) and (o). The amplitude from white to black is equal to peak to valley.
