Figure 3

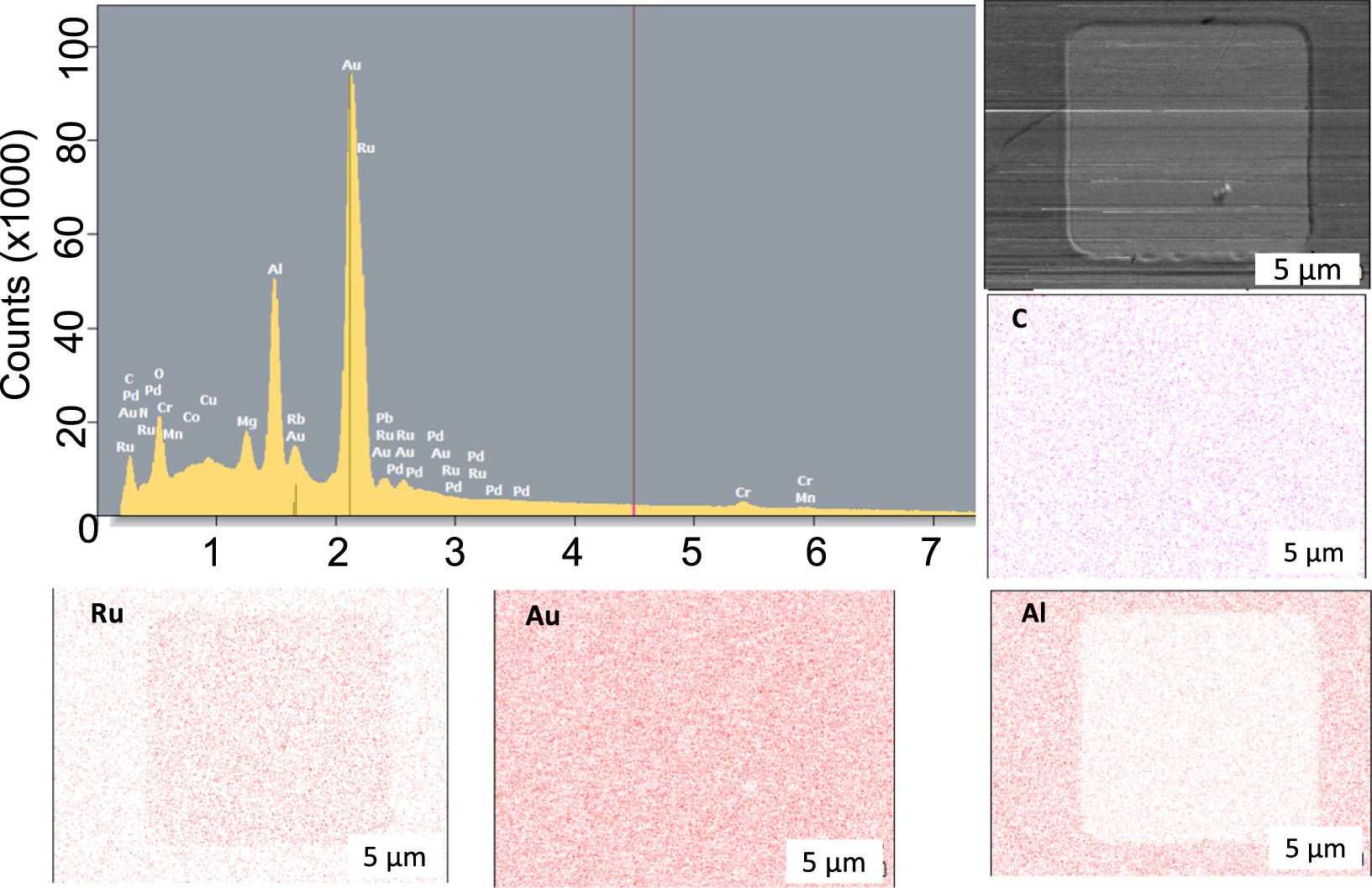

Chemical analysis on an MTJ with a large TMR ratio. Energy dispersive X-ray spectroscopy (EDX) profile for the electron-beam energy between 0.1 and 10 kV for the MTJ. SEM image taken at 10 kV and the corresponding EDX maps are shown for C, Al, Au and Ru.
