Figure 2

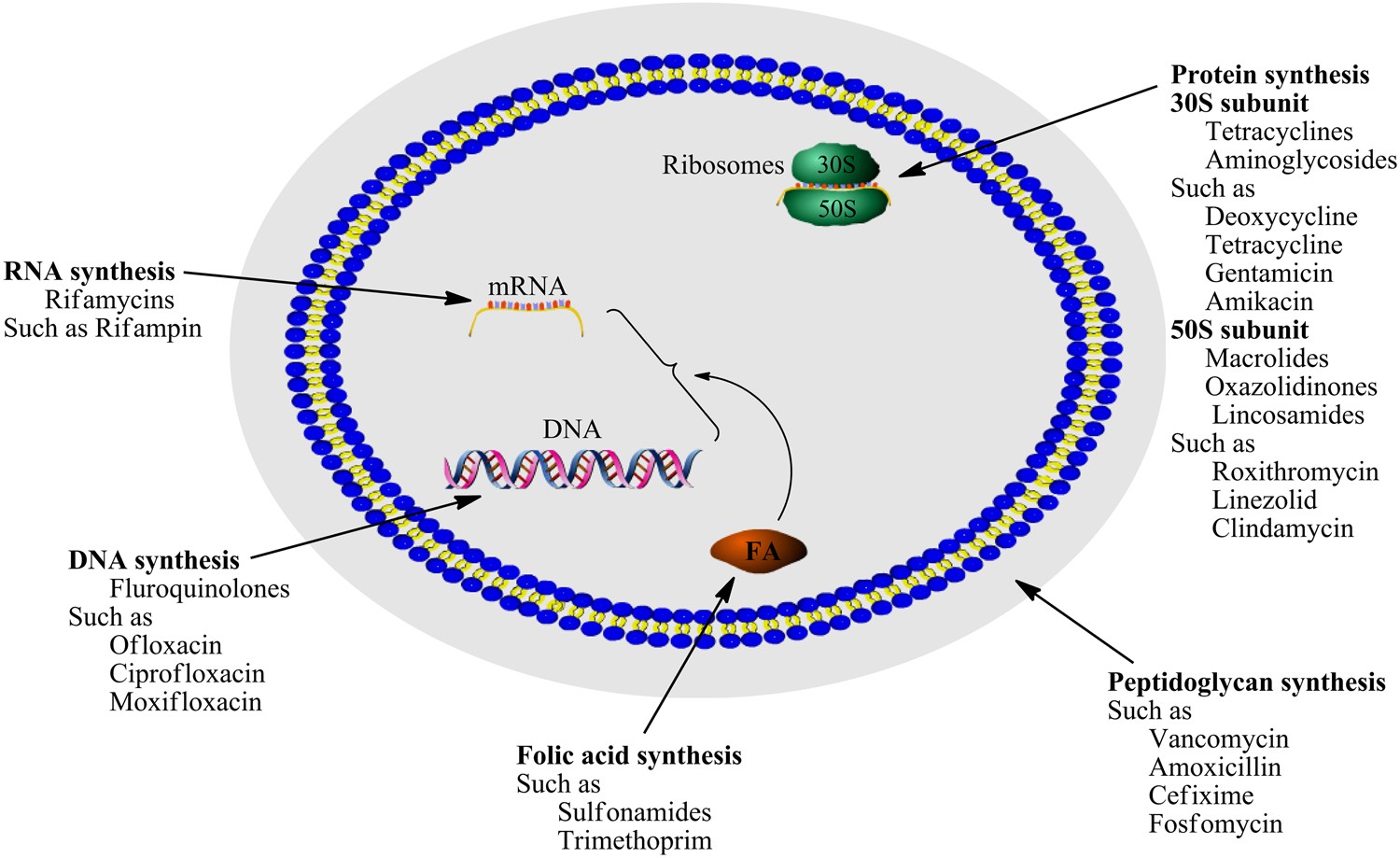

Main macromolecular targets involving antimicrobial mechanisms. This figure was drawn successively using Pathway Builder Tool 2.0, ChemBioOffice 2010 and Adobe Photoshop CS3.
Figure 2 | Scientific Reports
Main macromolecular targets involving antimicrobial mechanisms. This figure was drawn successively using Pathway Builder Tool 2.0, ChemBioOffice 2010 and Adobe Photoshop CS3.
