Figure 2

From: Essential oil of Siparuna guianensis as an alternative tool for improved lepidopteran control and resistance management practices

Figure 2

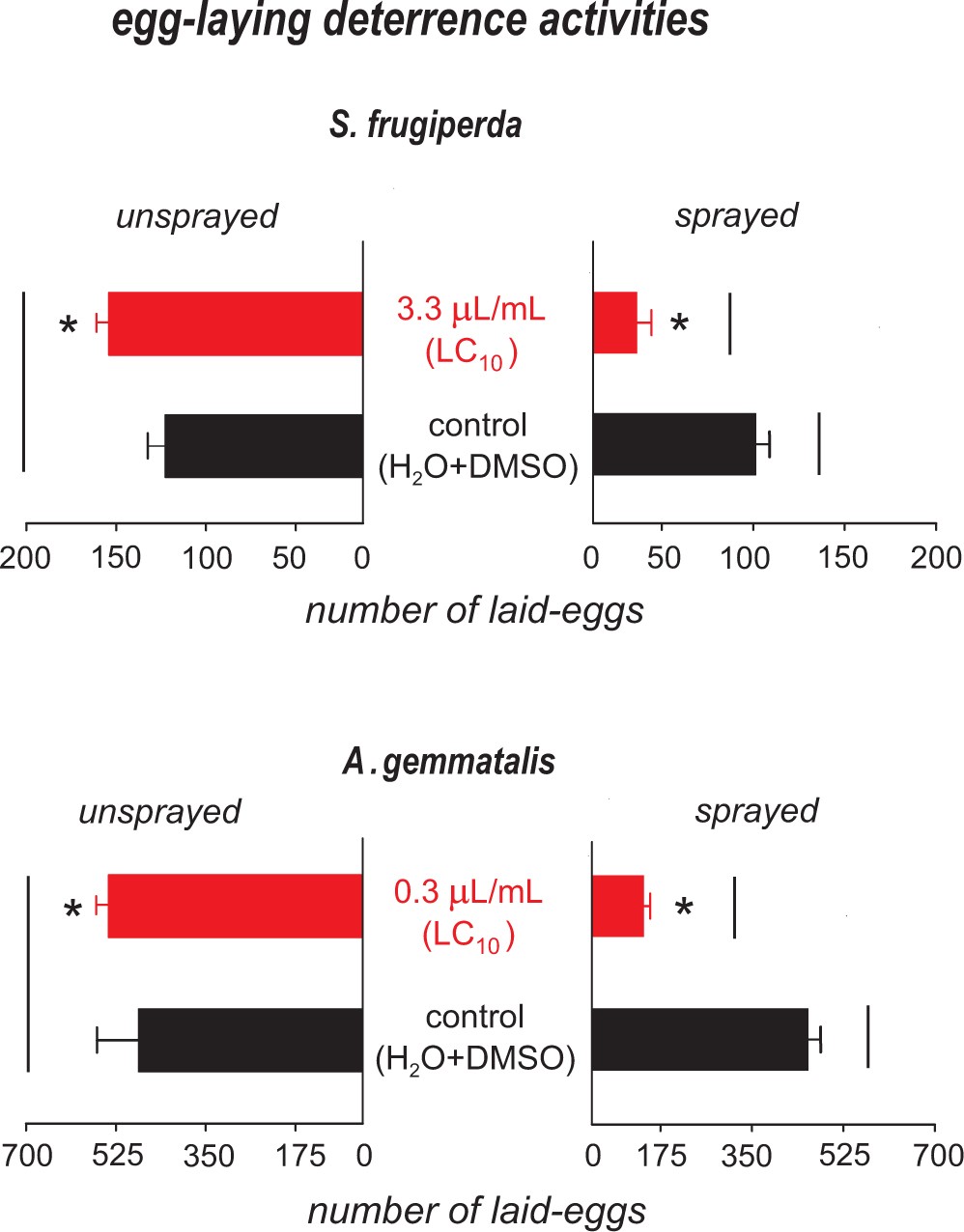

Number of eggs laid by females of Spodoptera frugiperda and Anticarsia gemmatalis on the sprayed with sublethal dose of the essential oil of Siparuna guianensis (LC10) and the unsprayed (H2O + DMSO) sides of the oviposition containers. Asterisks indicate significant differences (P < 0.05) between sprayed and unsprayed sides of the same treatment. Horizontal bars indicate significant differences (P < 0.05) between the same sides of the essential oil of Siparuna guianensis and control.
