Figure 8
From: Detection of chikungunya virus DNA using two-dimensional MoS2 nanosheets based disposable biosensor

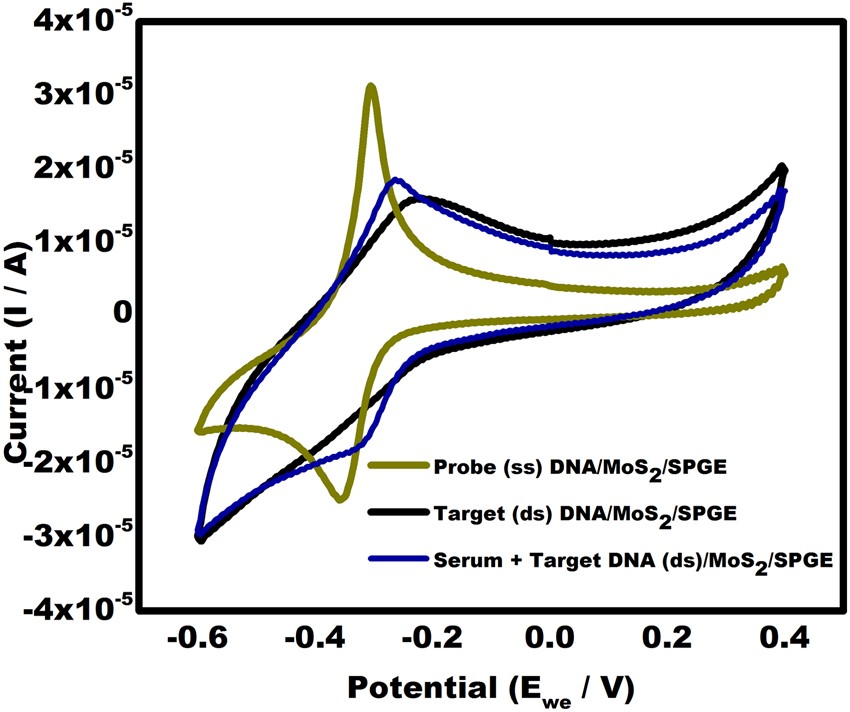

Cyclic voltammogram hybridization of chikungunya TDNA spiked in real sample (serum) in comparison with PDNA and TDNA in the potential range from −0.6 V to +0.4 V at a scan rate of 100 mVs−1.
