Figure 4
From: Parallel descending dopaminergic connectivity of A13 cells to the brainstem locomotor centers

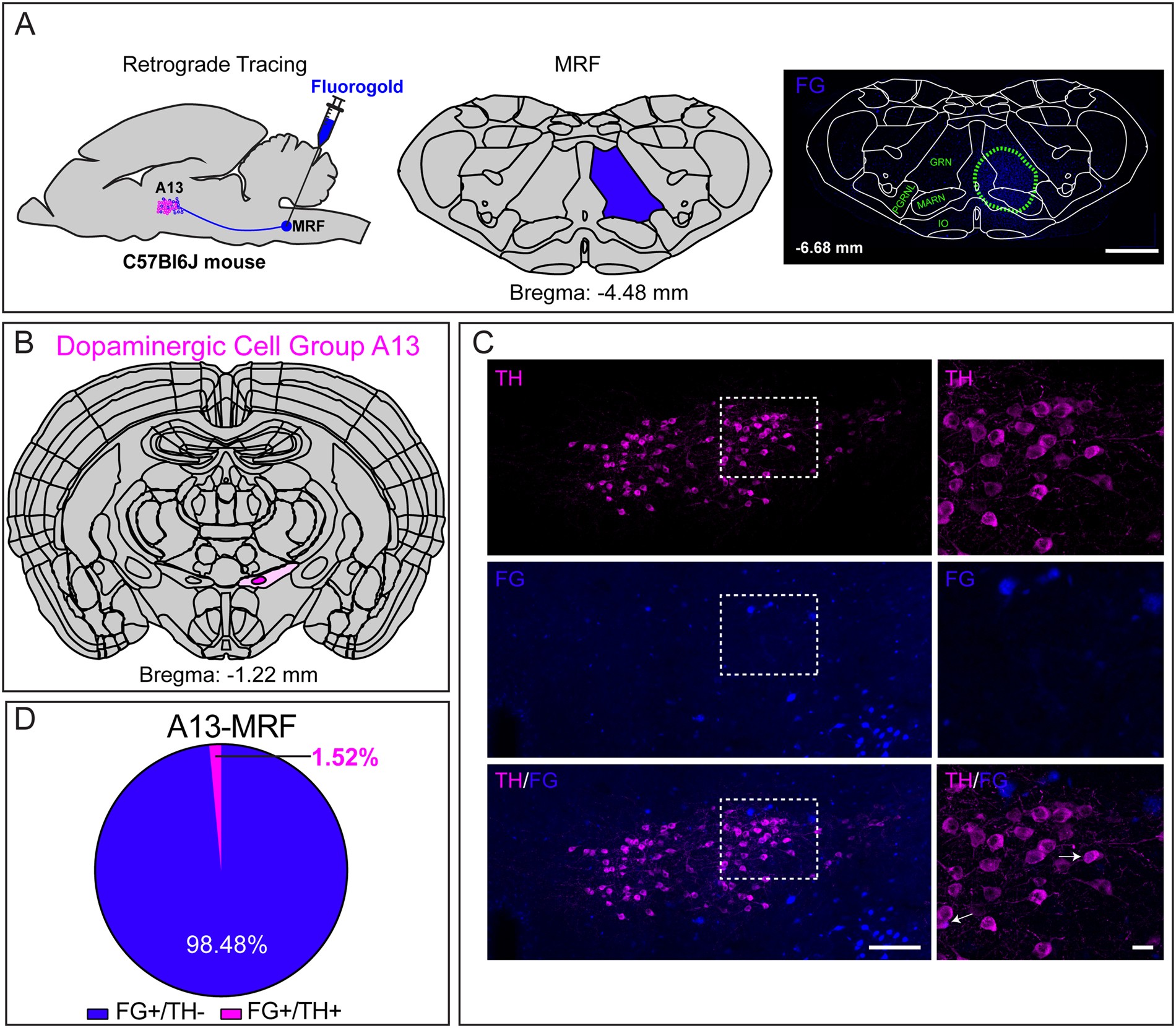

Dopaminergic A13 cells lack projections to the Gi in the MRF. (A–D) A few FG labelled cells with TH-ir were observed in the A13 region (1.5%, n = 6 mice). Scale bars A = 1000 µm, B,C = 100 µm and 20 µm. Atlas images adapted from template available from Allen Mouse Brain Atlas (2004)39,90,91.
