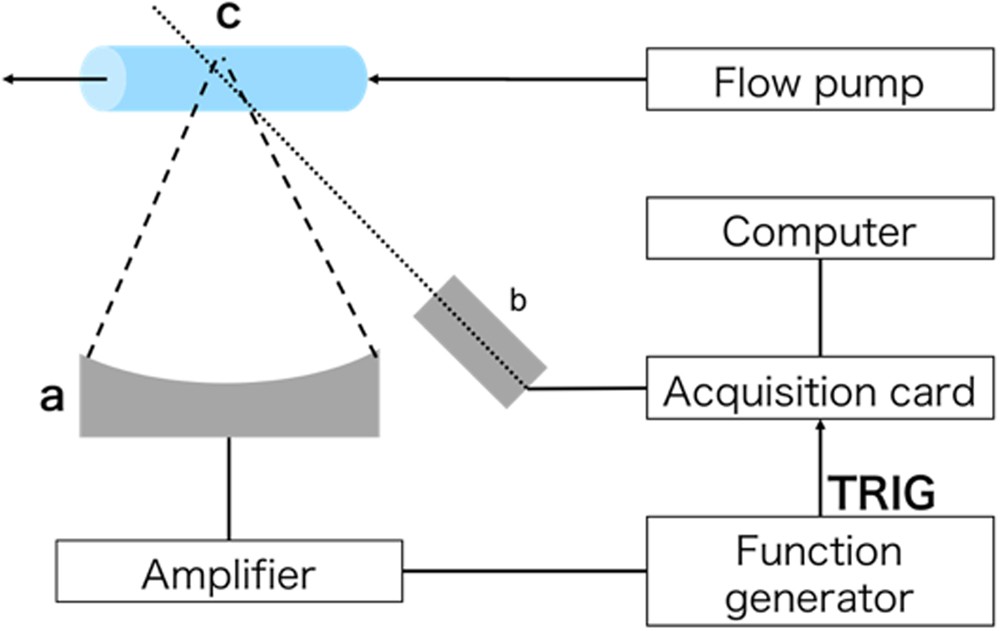

Figure 2

Schematic of experimental setup for cavitation detection. a: Emission transducer. Two different transducers were used: 3.34 and 5.39 MHz. b: Passive cavitation detector. c: Bubbles are circulating at controlled flow speed in acoustically transparent tube placed in focal zone of emission transducer.
