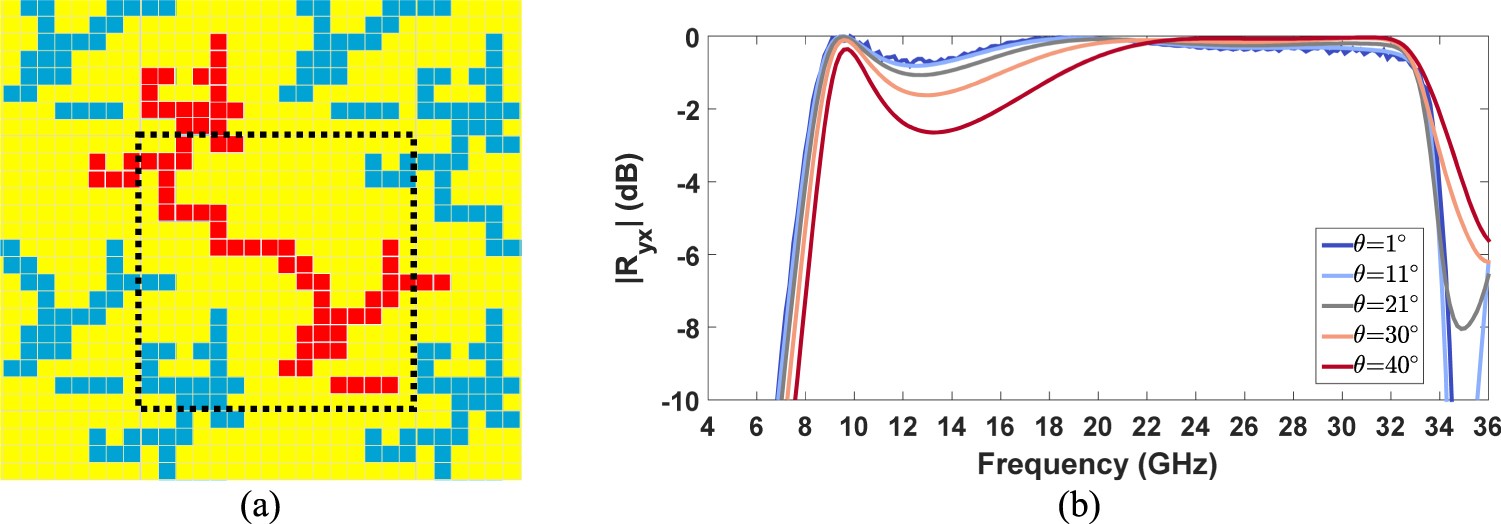

Figure 9

Metasurface’s topology: the resonant element (highlighted in red) extends beyond the minimum period of the metasurface (black dotted line) (a); Simulated |R _yx | of the refined metasurface as a function of the frequency for different elevation angles (θ = 1°, 11°, 21°, 30°, 40°) of the incident wave (b).
