Figure 10
From: Synchronised dual-wavelength mode-locking in waveguide lasers

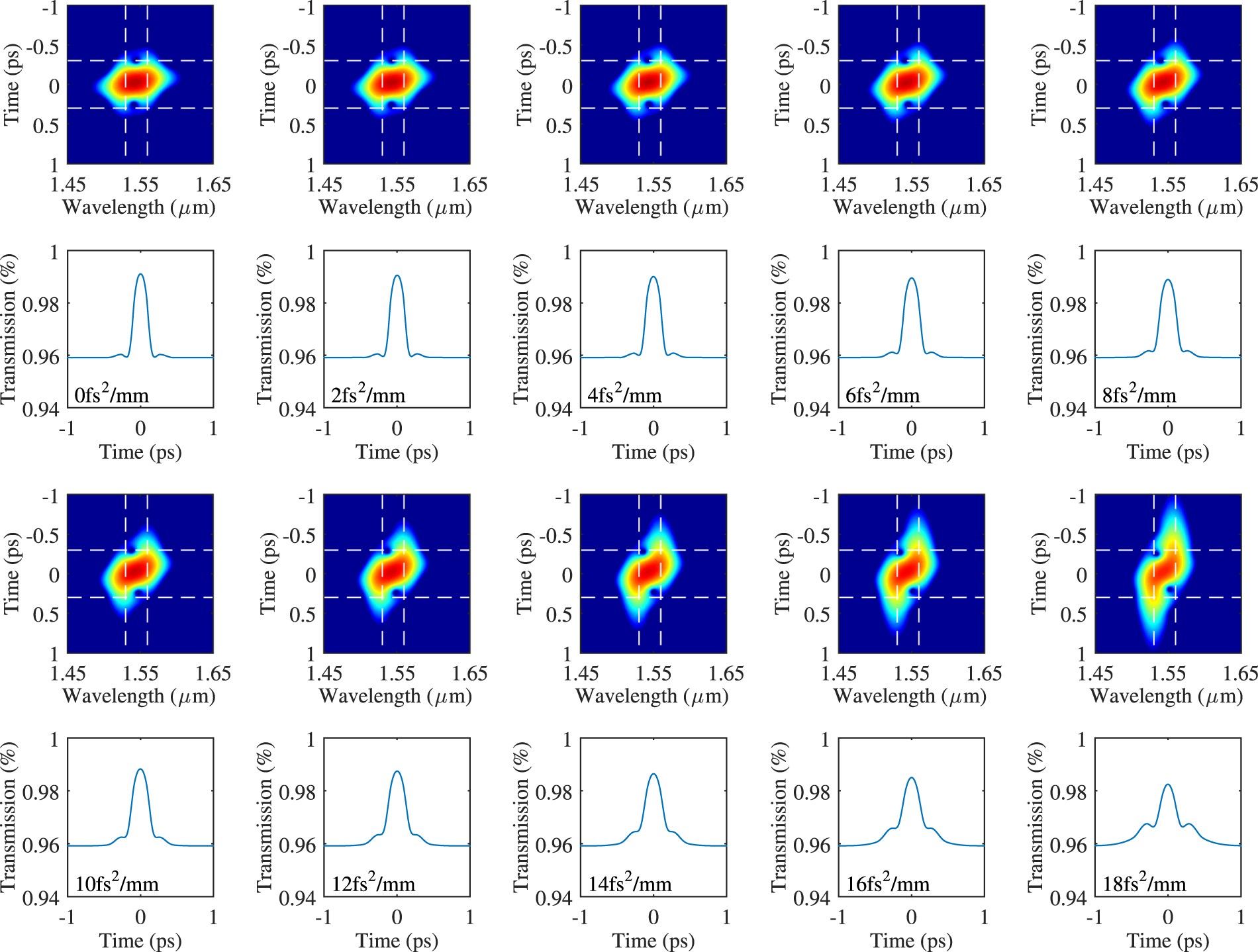

Spectrograms of mode-locking output pulses and the transmission functions of the SA for dispersions from 0 to 18 fs2/mm with a step of 2 fs2/mm. The vertical dotted lines denote the wavelength 1530 and 1560 nm. The horizontal dotted lines are the references for the leading and trailing edges of the pulse.
