Figure 3
From: Synchronised dual-wavelength mode-locking in waveguide lasers

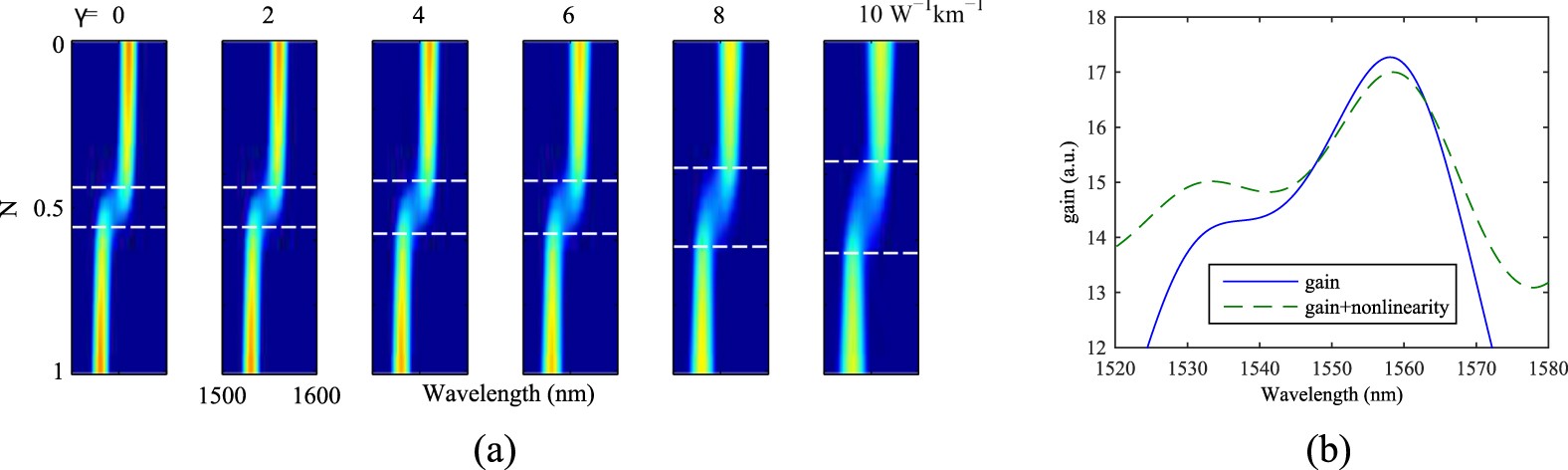

Mode locking under the influence of nonlinearity with no dispersion. (a) Mode-locked pulse’s spectral evolution. The white dotted lines indicate the range of ΔN. (b) The effect of nonlinear reduces the difference between two gain peaks.
