Figure 11

From: Synthesis, fungicidal activity, structure-activity relationships (SARs) and density functional theory (DFT) studies of novel strobilurin analogues containing arylpyrazole rings

Figure 11

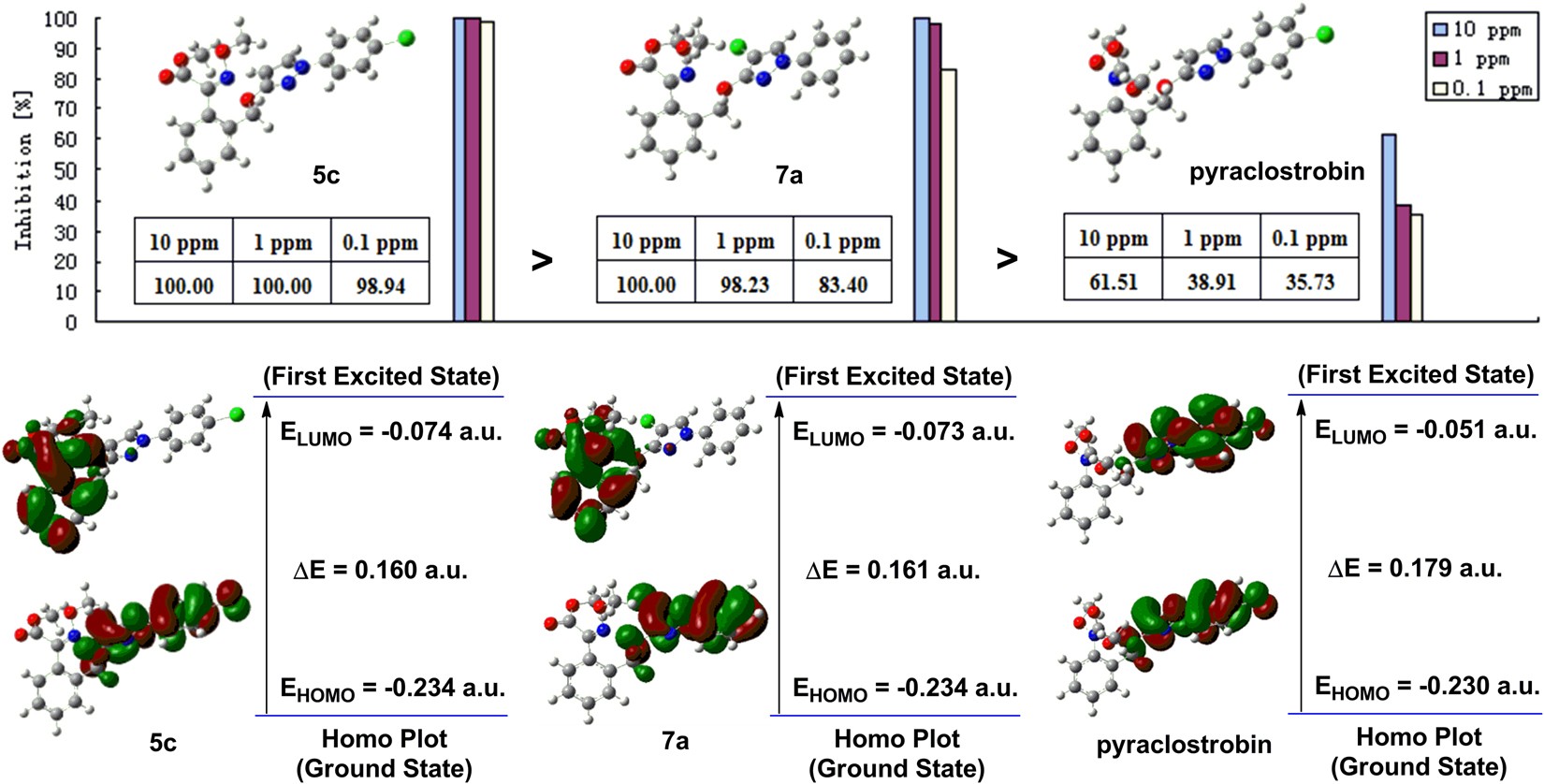

Fungicidal activity and DFT comparison of 5c, 7a and pyraclostrobin. (The DFT calculations were carried out in the ground-state (in vacuo) with Gaussian 09 software by using B3LYP/6–31 G* method. The HOMO and LUMO maps were extracted from GuassView 5.0 program based on the optimized structures).
