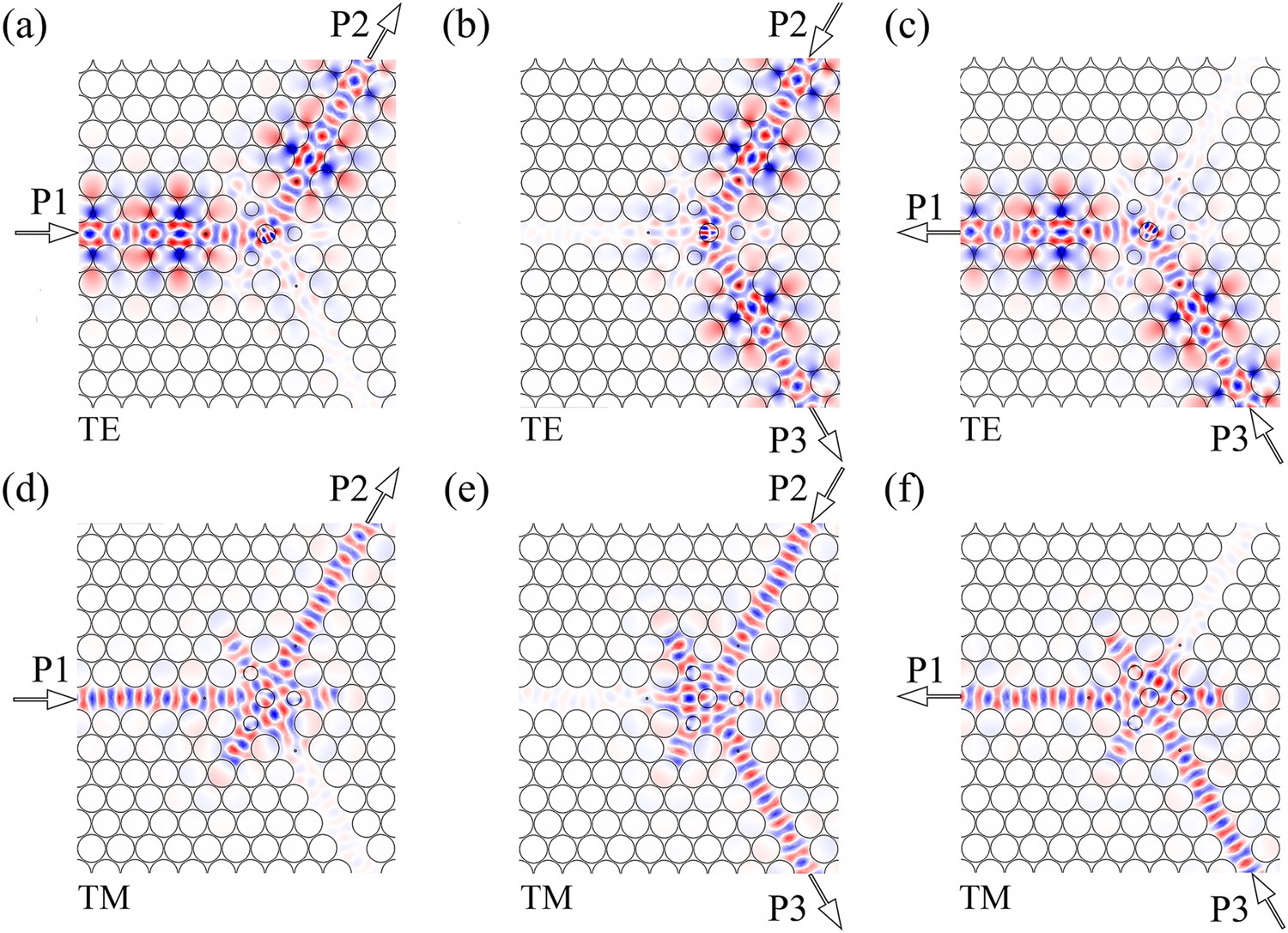

Figure 9
Distributions of electric field Ez in the centre region of PIC circulator for TE wave (a) input from P1, (b) input from P2, (c) input from P3; distributions of magnetic field Hz for TM wave (d) input from P1, (e) input from P2, (f) input from P3.
