Figure 3 | Scientific Reports

Figure 3

From: Synthesis and Characterization of a Nano-Polyplex system of GNRs-PDMAEA-pDNA: An Inert Self-Catalyzed Degradable Carrier for Facile Gene Delivery

Figure 3

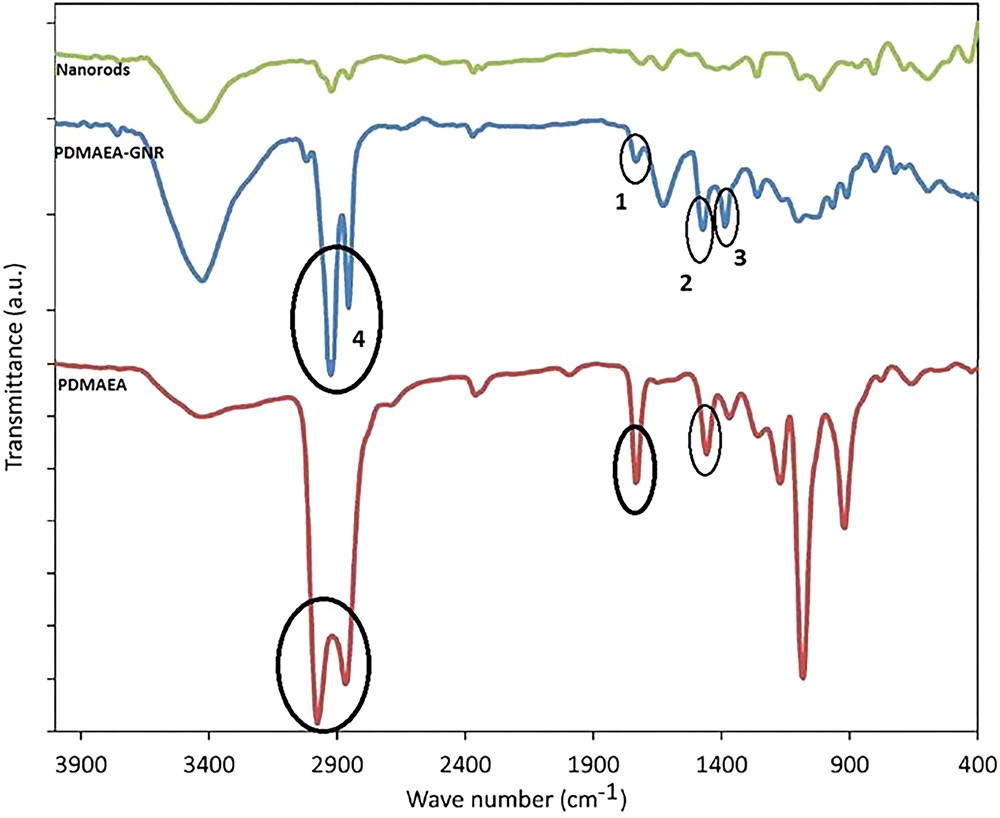

The above figure depicts FT-IR spectra of bare GNRs and PDMAEA as well as their complex forms. The characteristic peaks in the GNRs-PDMAEA complex appeared at the same position of corresponding peaks observed for bare PDMAEA. Comparison of the three FT-IR spectrum confirmed conjugation of the polymer to the matrix of nanostructures.
