From: Systematic biology analysis on photosynthetic carbon metabolism of maize leaf following sudden heat shock under elevated CO2

Figure 6

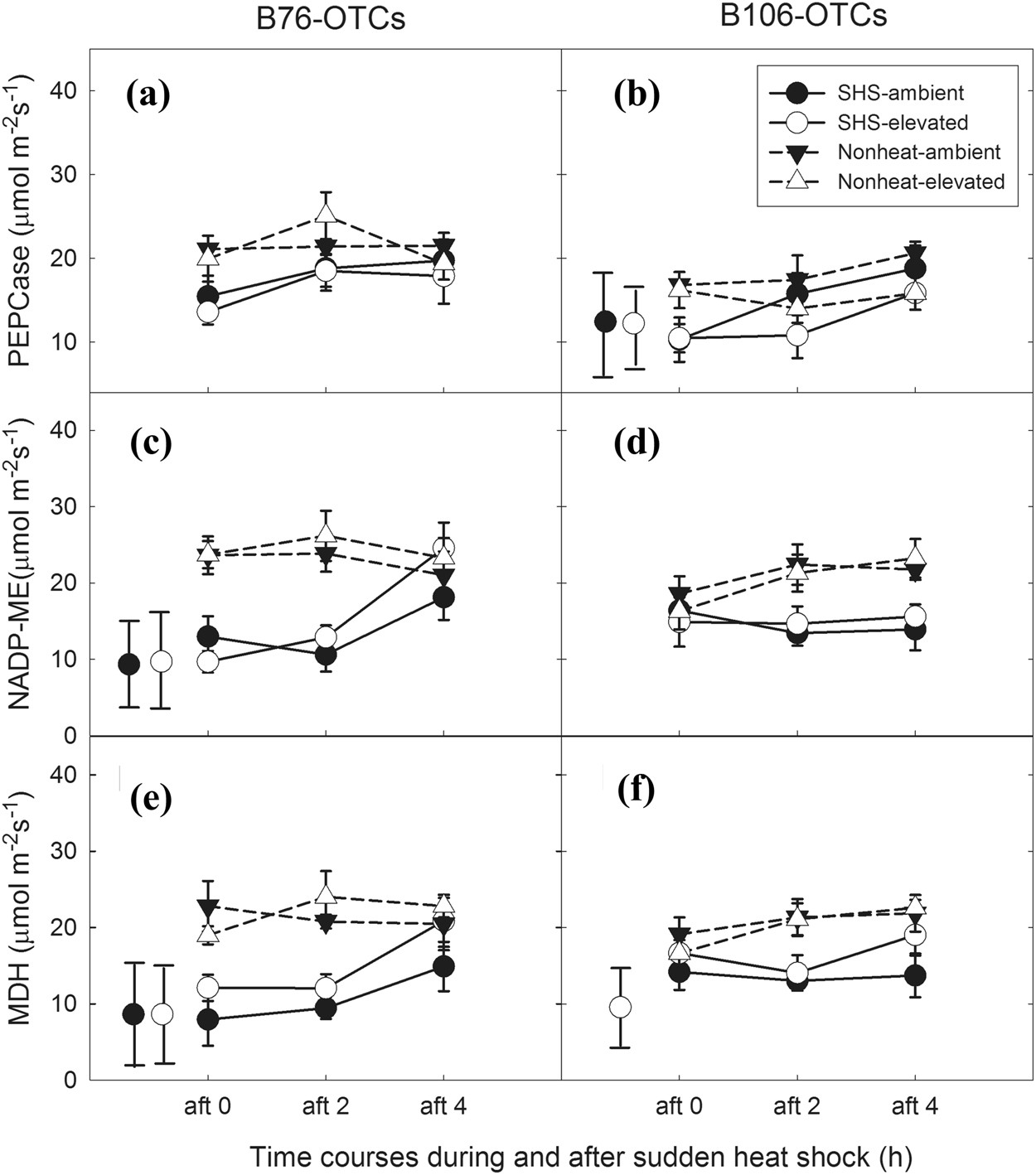

Activities of three C4 key photosynthetic enzymes in response to recovery from sudden heat shock (SHS) in two maize genotypes grown under two CO2 levels. Shapes of circle in solid line and triangle in dotted line represent SHS treated leaves and nonheated leaves, respectively, while black and white symbols mean ambient CO2 and elevated CO2, respectively. The grey area represents the period during 2 h SHS. Vertical bars represent at two sides of each panel represent significance scale regarding each combination of CO2 and SHS treatments across during and after SHS from one-way ANOVA analysis, (P < 0.05). n = 3–5.
