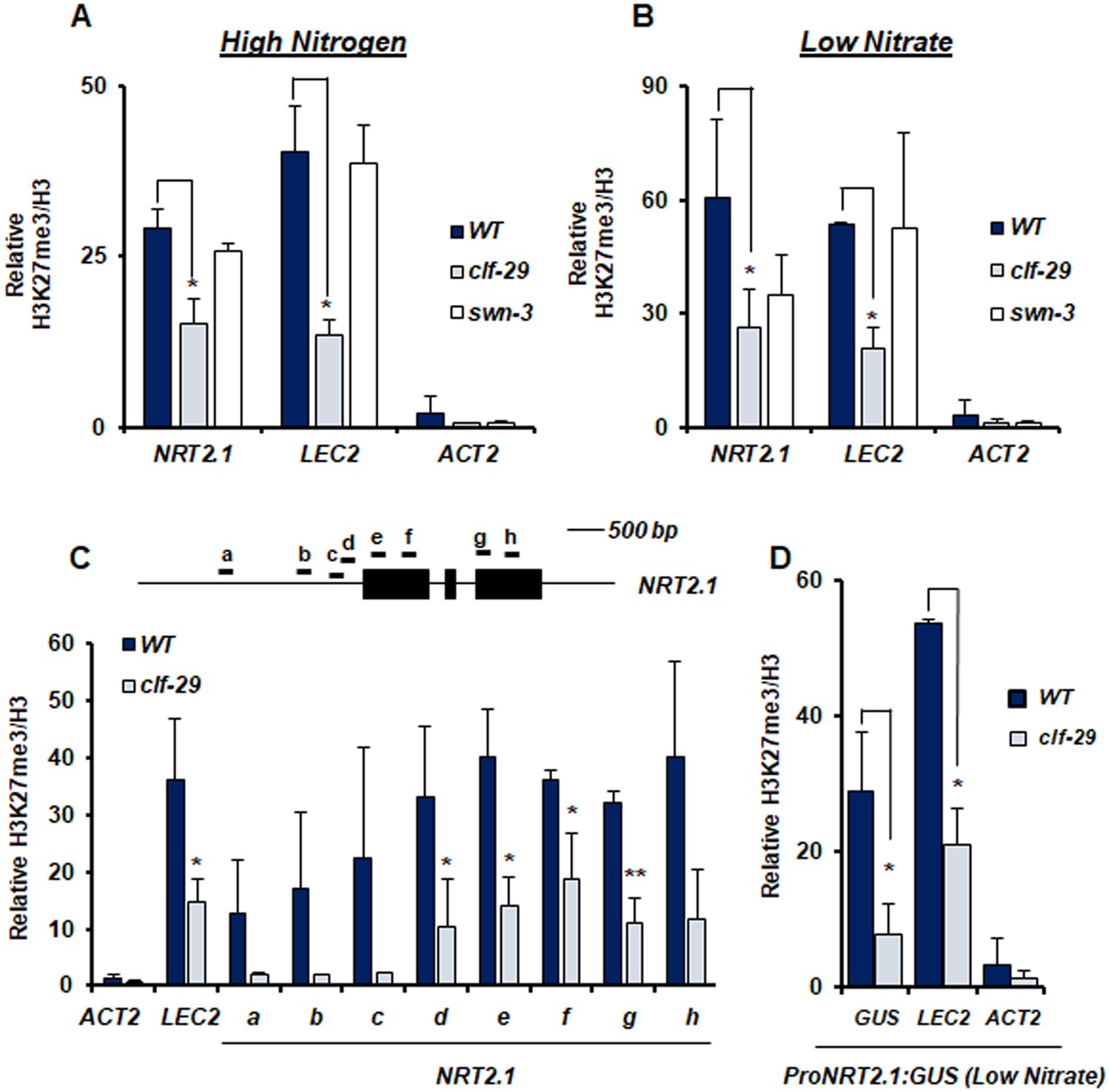

Figure 1
From: Polycomb Repressive Complex 2 attenuates the very high expression of the Arabidopsis gene NRT2.1
CLF controls H3K27me3 enrichment at the NRT2.1 locus under both repressive and active conditions for expression. ChIP analysis of H3K27me3 in WT, clf-29, and swn-3 roots of 7 days-old plants grown under (A) high nitrogen (10 mM NH4NO3) or (B) low nitrate (0.3 mM NO3−) conditions. LEC2 and ACT2 served as positive or negative control for H3K27me3, respectively. Positions of primers used in qRT-PCR are available in Fig. S1. (C) ChIP analysis of H3K27me3 in WT and clf-29 covering the NRT2.1 locus. (D) ChIP analysis of H3K27me3 at the ProNRT2.1:GUS locus in WT and clf-29 roots of 7 days-old plants grown under low nitrate (0.3 mM NO3−) condition. Quantification by qRT-PCR is shown as the percentage of H3. Error bars represent standard errors of the mean based on 3 biological replicates. Statistical significance was computed using a two-tailed Student’s t-test. Significance cutoff: *p < 0.05, **p < 0.01, ***p < 0.001.
