Figure 3
From: One-way edge modes in a photonic crystal of semiconductor at terahertz frequencies

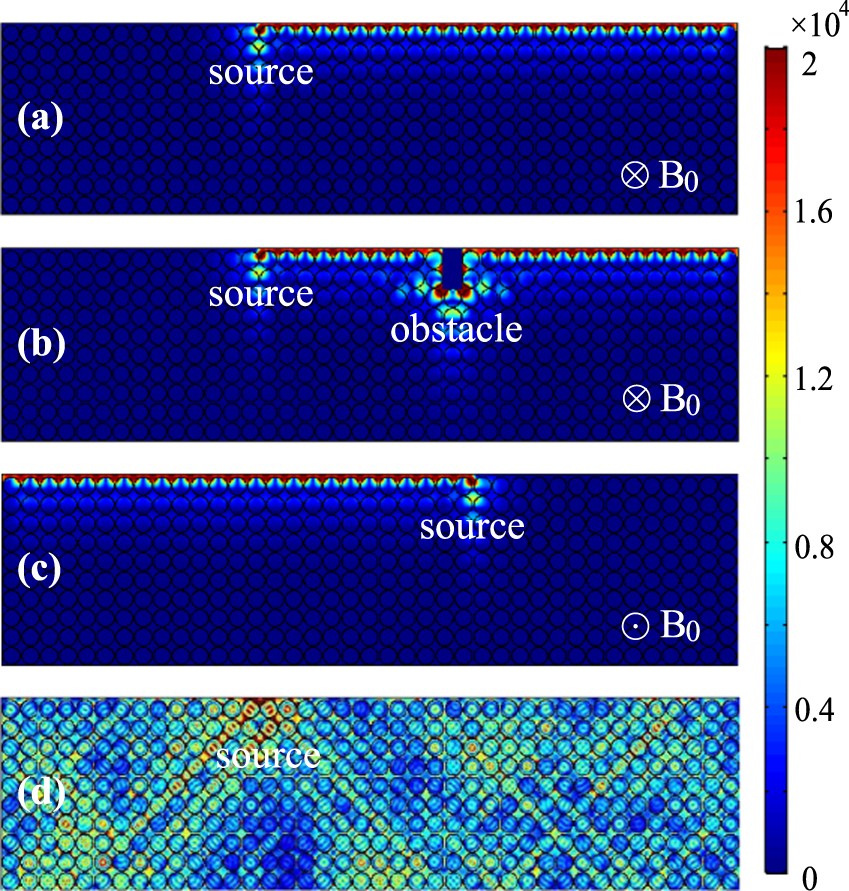

Simulated electric field amplitudes in the PhC systems with different external magnetic fields. (a) B0 = 0.9 T, (b) B0 = 0.9 T but with an obstacle, (c) B0 = −0.9 T, and (d) B0 = 0. The obstacle in (b) is a metal slab of sizes 0.97a × 2a (i.e., 0.6λ × 1.26λ). In all cases, the source is a linear magnetic current located in the air layer and the frequency is 3.1 THz. The other parameters of the PhC systems are the same as in Fig. 2.
