From: Identification on mitogen-activated protein kinase signaling cascades by integrating protein interaction with transcriptional profiling analysis in cotton

Figure 3

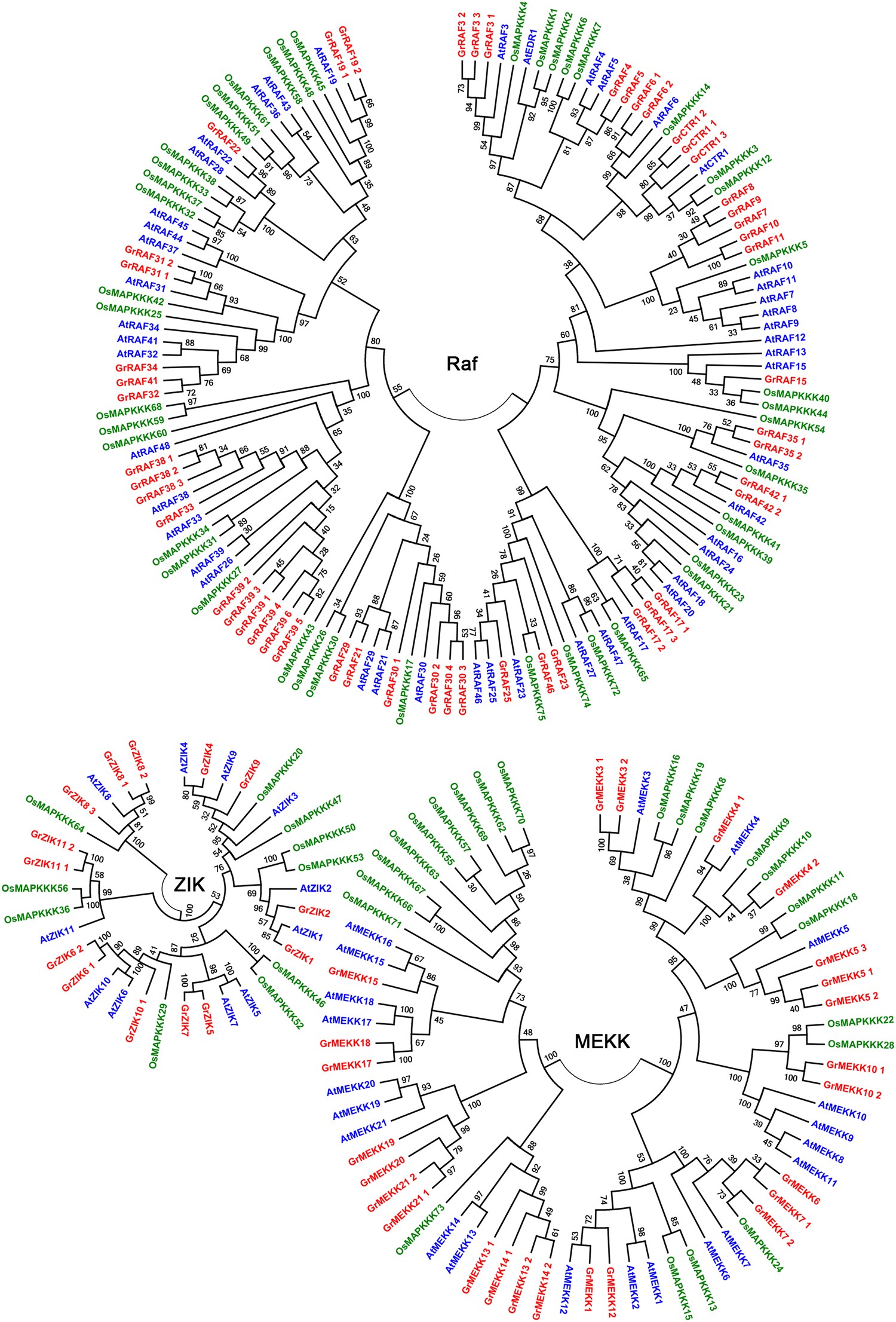

Phylogenetic tree of MAPKKK family genes from G. raimondii, A. thaliana and O. sativa. Amino acid sequences were aligned using Clustal W in MEGA 6 software and Maximum likelihood method was used to perform phylogenetic analysis with 1,000 bootstrap replicates. MAPKKKs from G. raimondii, A. thaliana and O. sativa were shown in red, blue, and green, respectively.
