Figure 4

From: Identification on mitogen-activated protein kinase signaling cascades by integrating protein interaction with transcriptional profiling analysis in cotton

Figure 4

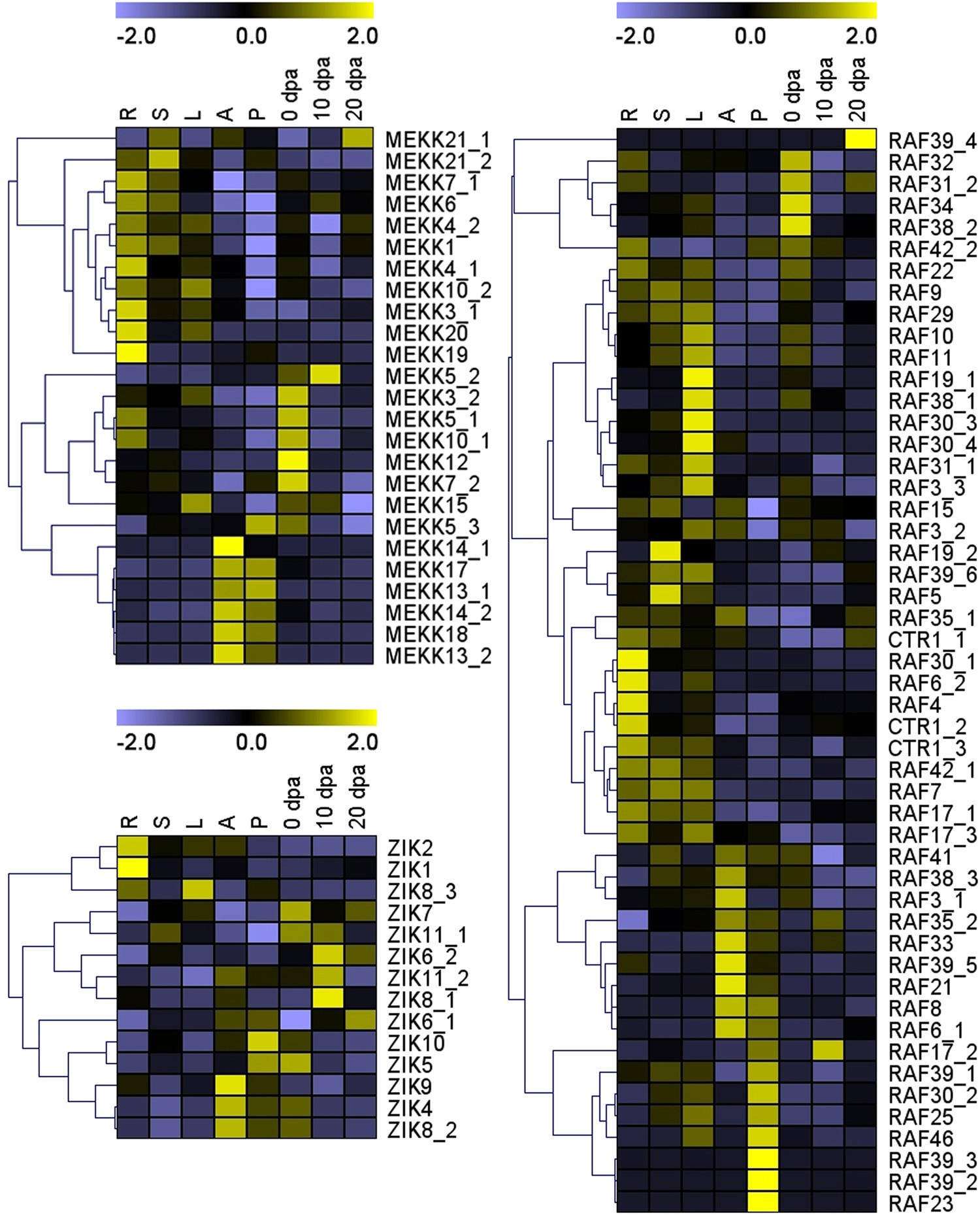

Expression pattern of 89 MAPKKK genes in G. hirsutum acc TM-1 based on transcriptome sequencing data. Expression pattern of the MAPKKKs in eight cotton tissues (root; stem; leaf; petal; anther; ovule at 0 dpa; fiber at 10 dpa and 20 dpa) were obtained with FPKM values and calculated by Z-Score. The RNA-Seq data used here could be downloaded from http://www.ncbi.nlm.nih.gov/bioproject/PRJNA248163/.
