From: Chytridiomycosis causes catastrophic organism-wide metabolic dysregulation including profound failure of cellular energy pathways

Figure 5

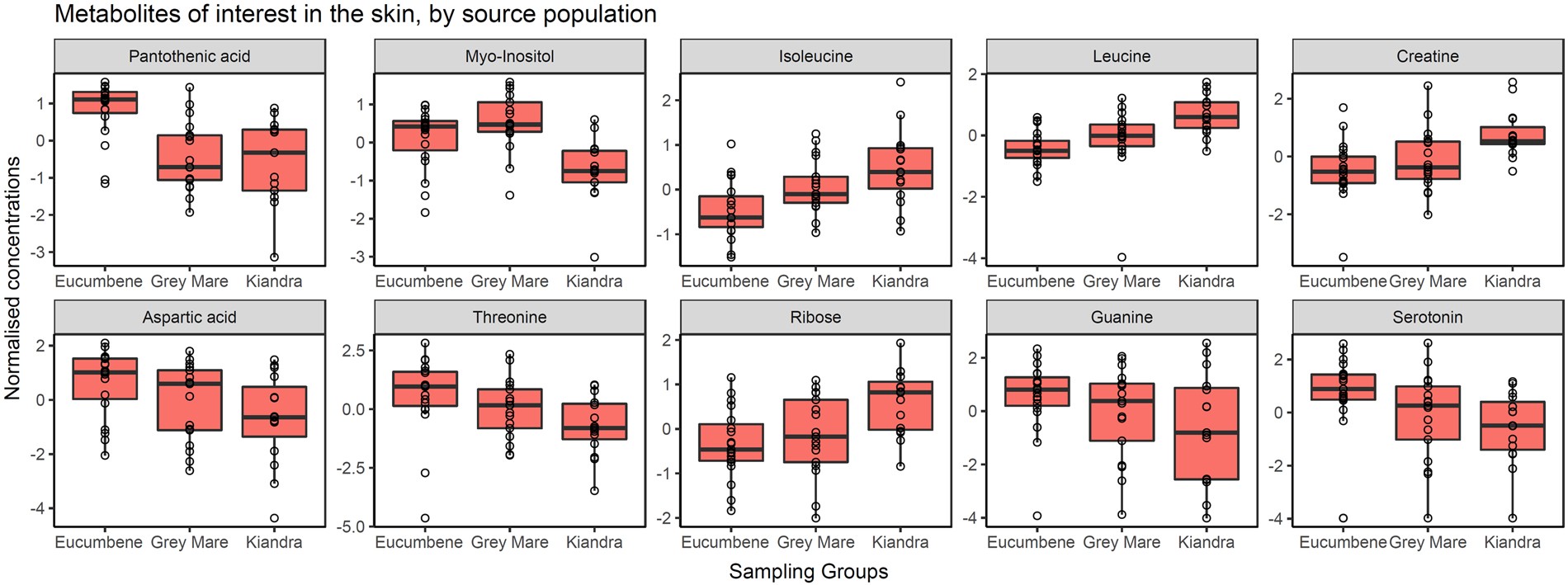

Box and whisker plots (with data points overlaid) of the relative concentration of identified metabolites of interest from skin samples according to their population of origin (using geom_boxplot from ggplot2 R package). Box hinges represent first and third quartiles, and middle represents the median. Whiskers extend 1.5 times the inter-quartile range of the hinge. Boxes are ordered by relative metabolite importance.
