From: Correlative atomic force microscopy quantitative imaging-laser scanning confocal microscopy quantifies the impact of stressors on live cells in real-time

Figure 3

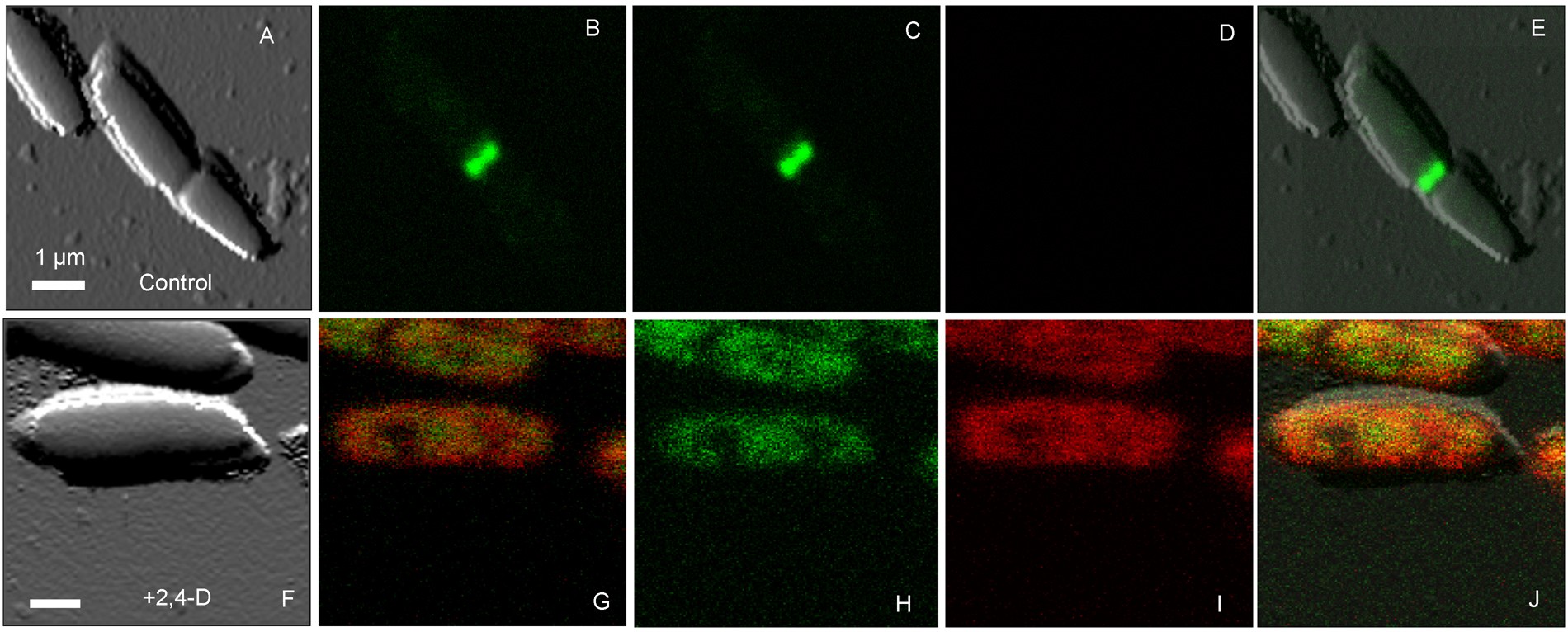

Simultaneous AFM-QI-LSCM of E. coli showing the localization of the Z-ring and onset of ROS during 2.4-D exposure. (A–E) Show the presence of a distinct Z-ring (C) in control cells and absence of a ROS signal (D). (F–J) Show the immediate delocalization of the Z-ring resulting in a diffuse green fluorescence and an increase in ROS signal. The confocal image was collected 5 min following the addition of 1 mM 2,4-D directly into the imaging media. (E and J) Are AFM images overlaid with the confocal images. FtsZ-GFP is shown in green and ROS, labeled with Cell-ROX, is shown in red. G and B show localization of two colors simultaneously. Bar is 1 µm.
