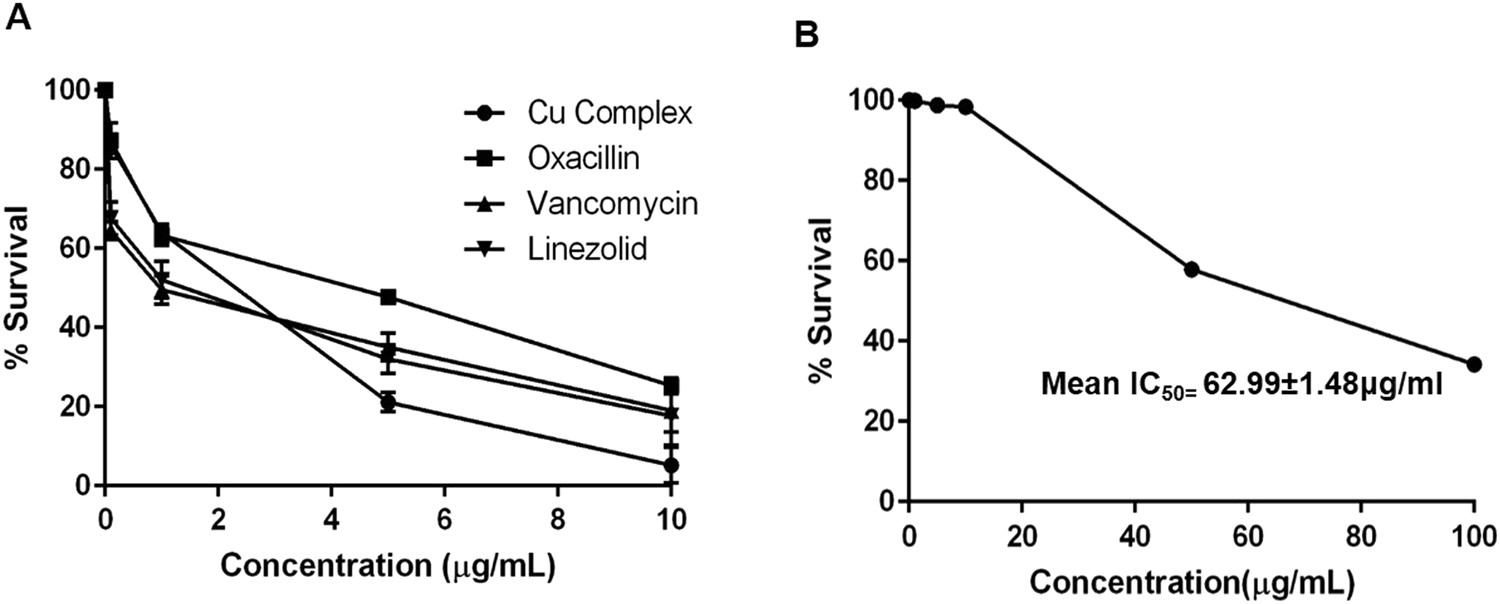

Figure 6

Intracellular activity of Cu complex. (A) Intracellular activity of Cu complex against S. aureus in RAW 264.7 cell lines in comparison with Oxacillin, Vancomycin and Linezolid. Different concentrations (0, 1, 5, & 10 μg/mL) were tested for all antimicrobial agents. The graph represents mean % survival of intracellular bacterial cells at different concentrations for each drug. All experiments were done thrice. (B) Cell cytotoxicity of Cu complex was determined using RAW 264.7 cell line. Cells were treated with different concentrations of Cu complex ranging from 0 to 100 μg/mL. The graph represents mean % survival at different concentrations. All experiments were done thrice.
