From: Synchronization transition in neuronal networks composed of chaotic or non-chaotic oscillators

Figure 1

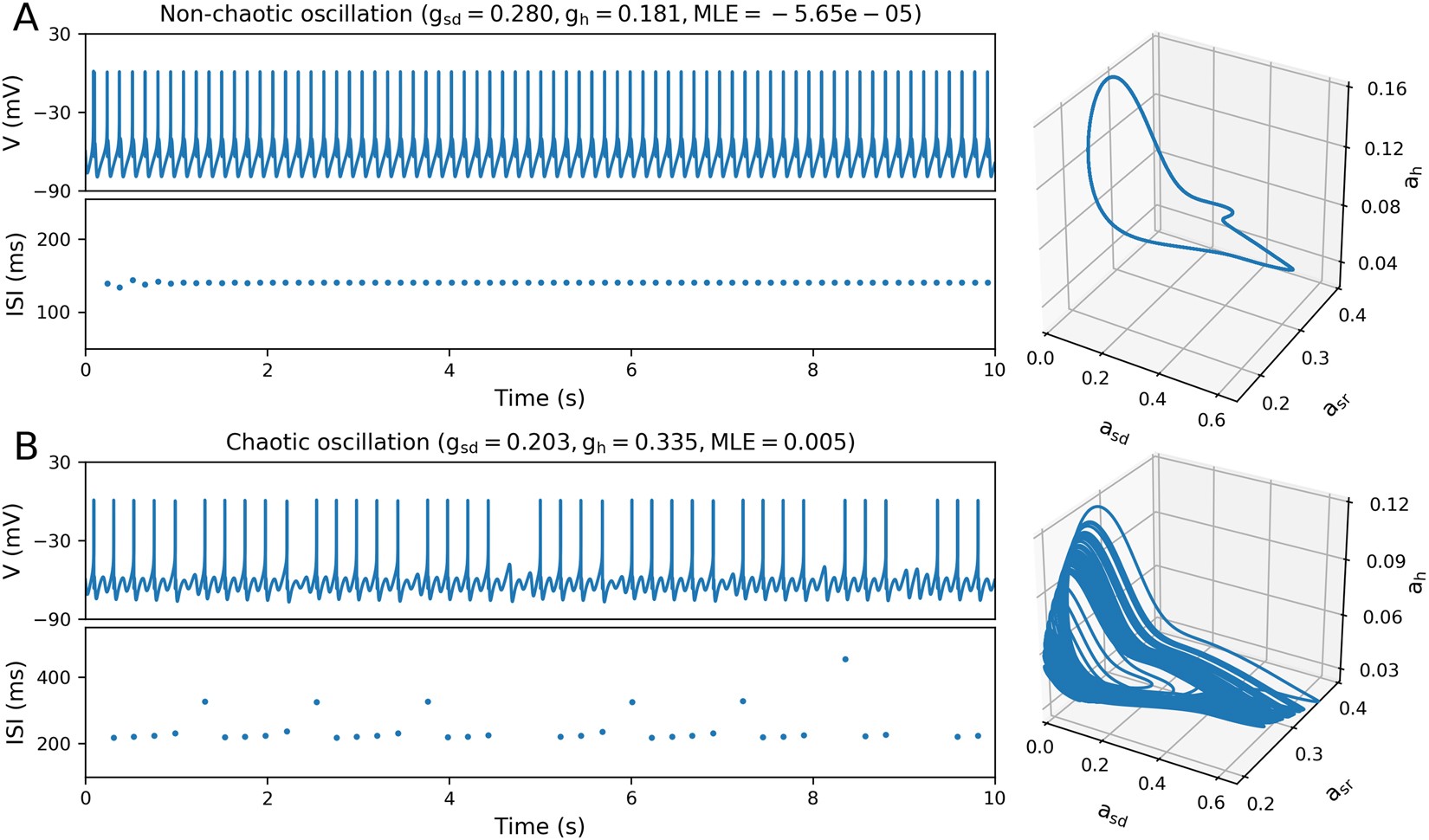

Examples of non-chaotic (A) and chaotic oscillation (B) of HB + Ih neurons at different combinations of conductance parameters (shown at the top together with the corresponding Maximum Lyapunov Exponent, MLE). Below each voltage time course, inter-spike interval (ISI) plots are shown. Right panels show three-dimensional phase space projections of variables a sd , a sr and a h .
