Figure 7
From: Synchronization transition in neuronal networks composed of chaotic or non-chaotic oscillators

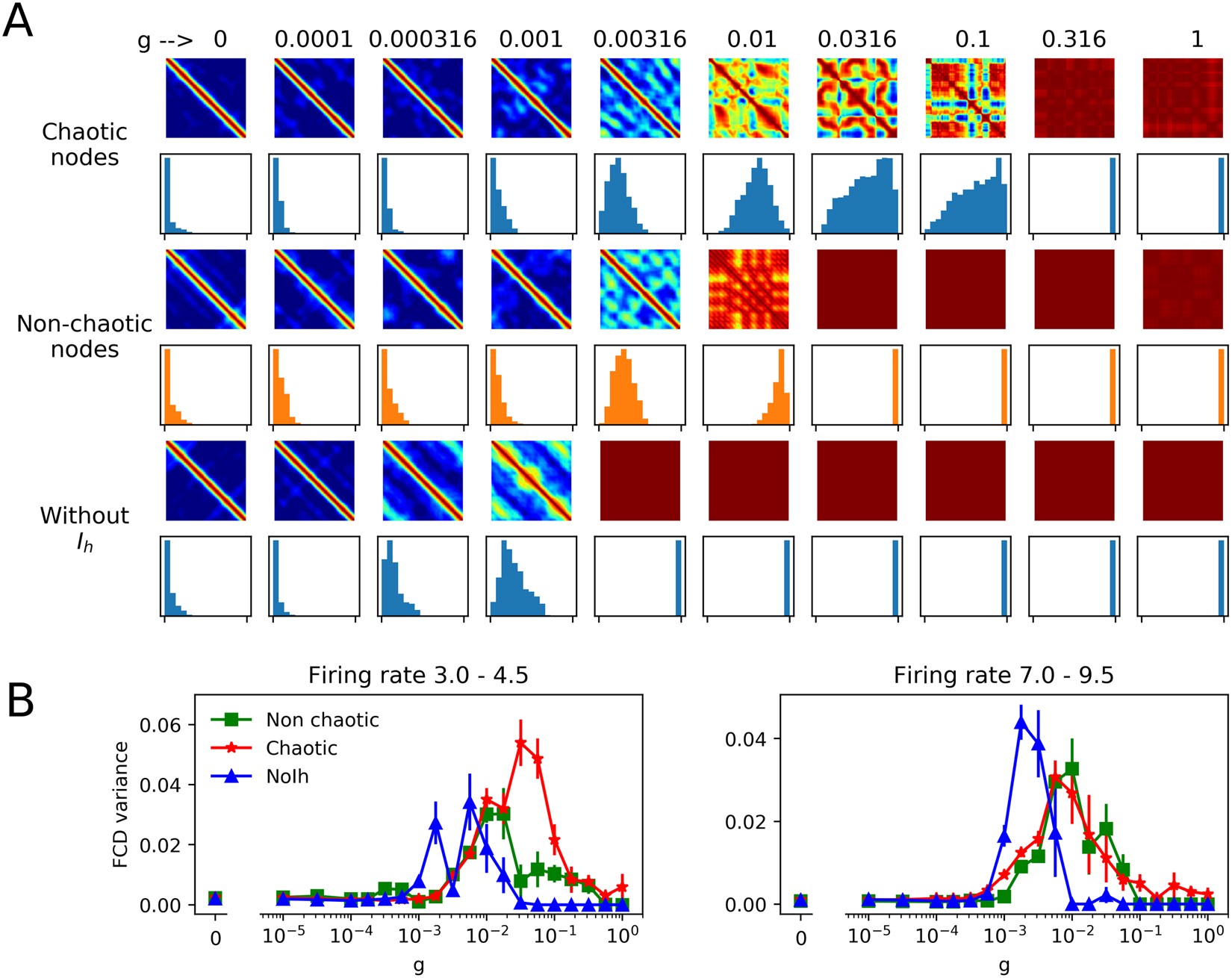

FCD in networks of chaotic and non-chaotic oscillators. (A) FCD matrices obtained at different values of synaptic conductance g in networks of either chaotic, non-chaotic or NoIh nodes. Below each matrix, an histogram of the values is shown. The diagonal and the neighbouring values were not included. (B) Variance of the FCD values (the same values plotted in the histograms) plotted against g. Average (±SEM) of 20 simulations with different random seeds for the small-world connectivity and parameters.
