Figure 7

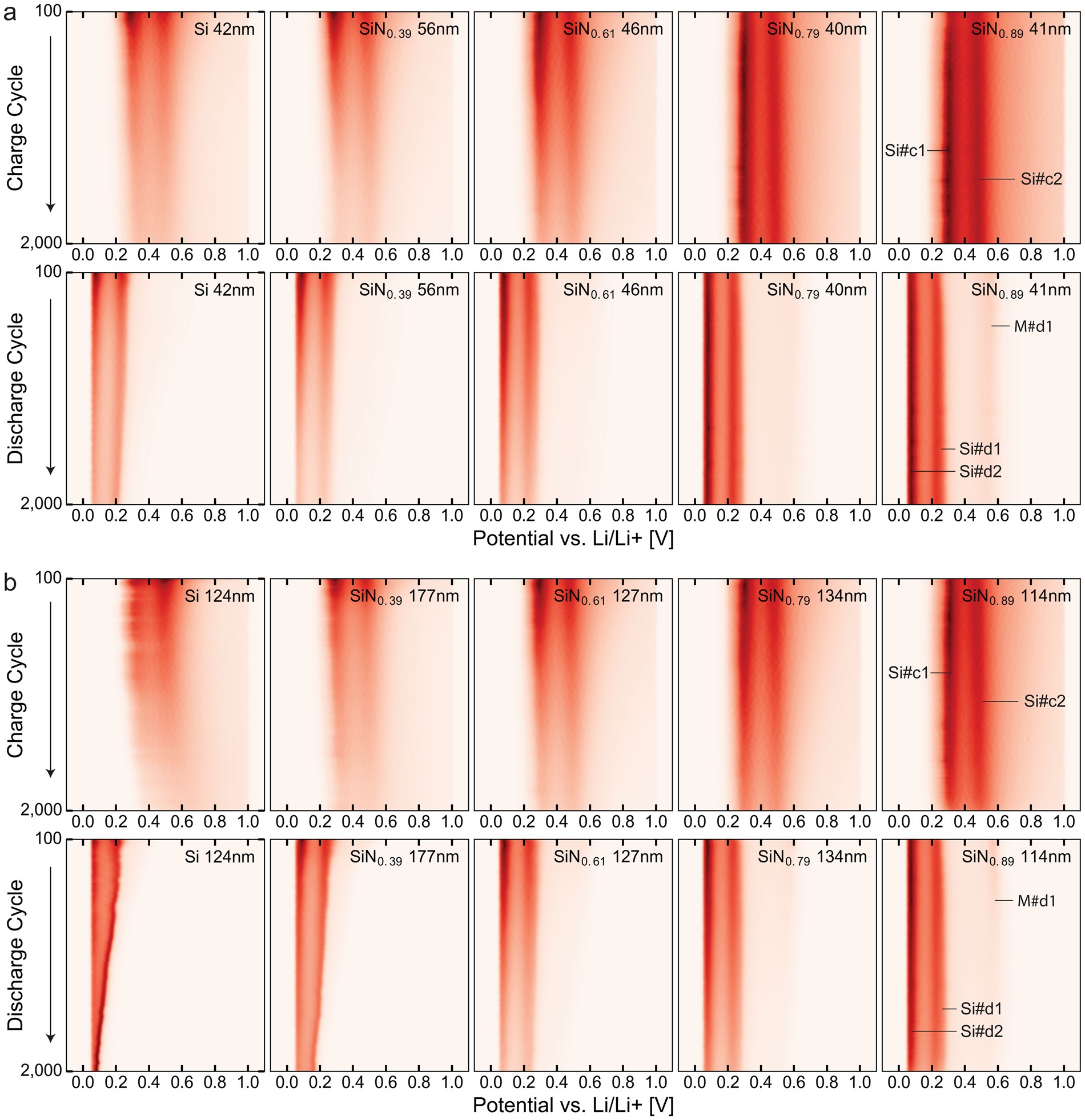

Differential capacity analysis of cycles 100–2,000. Colour maps showing the differential capacity analysis of the lithiation (discharge) and delithiation (charge) of the thin (a) and thick (b) electrodes of different compositions, showing the peak positions and intensities as they develop during cycles 100 to 2,000.
