Figure 3
From: Multiscale understanding of tricalcium silicate hydration reactions

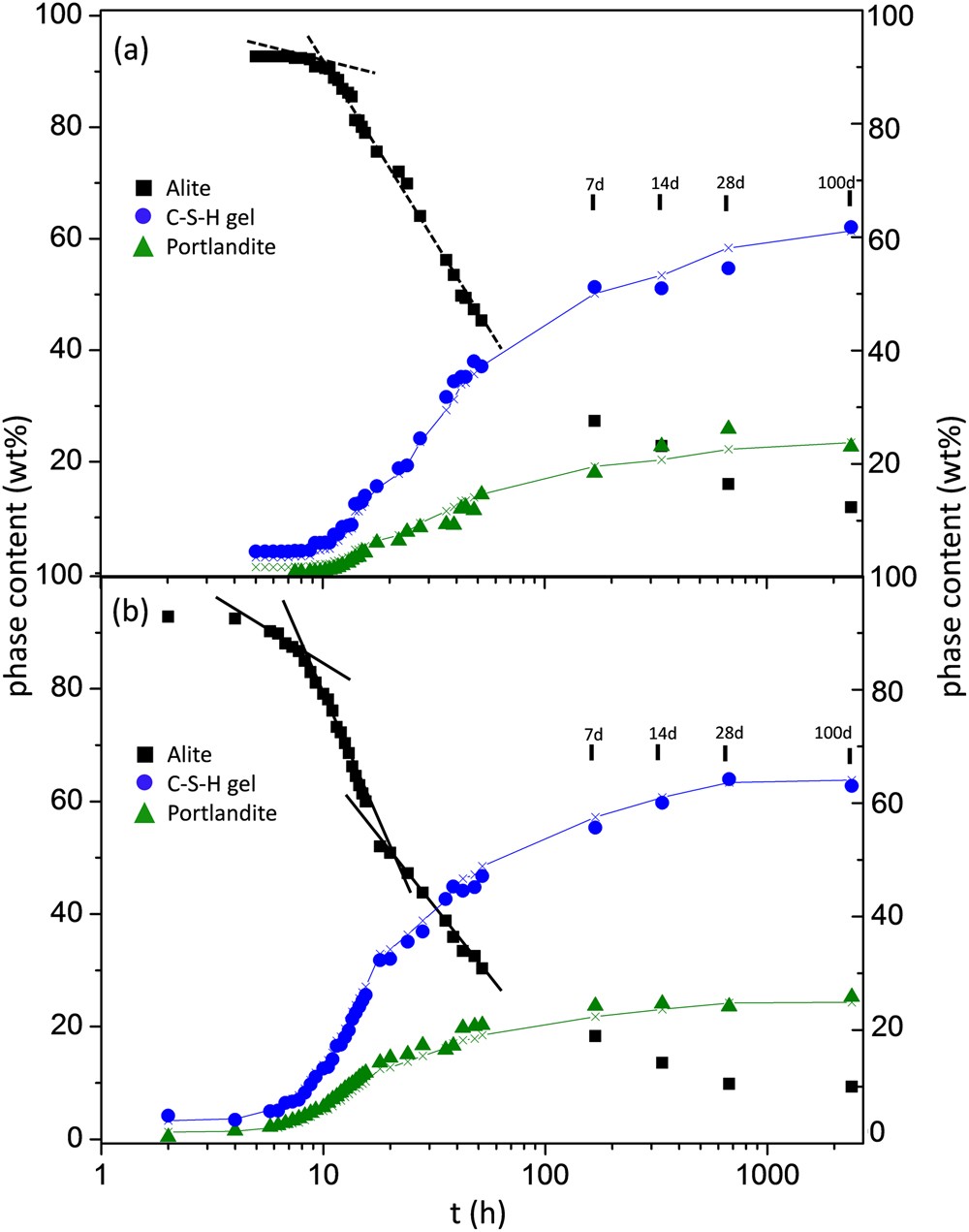

Quantitative phase analysis results from SXRPD. (a) C3S_21 µm_080 and (b) C3S_7 µm_080. The lines for C-S-H gel (blue) and portlandite (green) show the theoretical amounts expected from the measured dissolution of alite according to reaction (1).
