Figure 3
From: High capacity and stable all-solid-state Li ion battery using SnO2-embedded nanoporous carbon

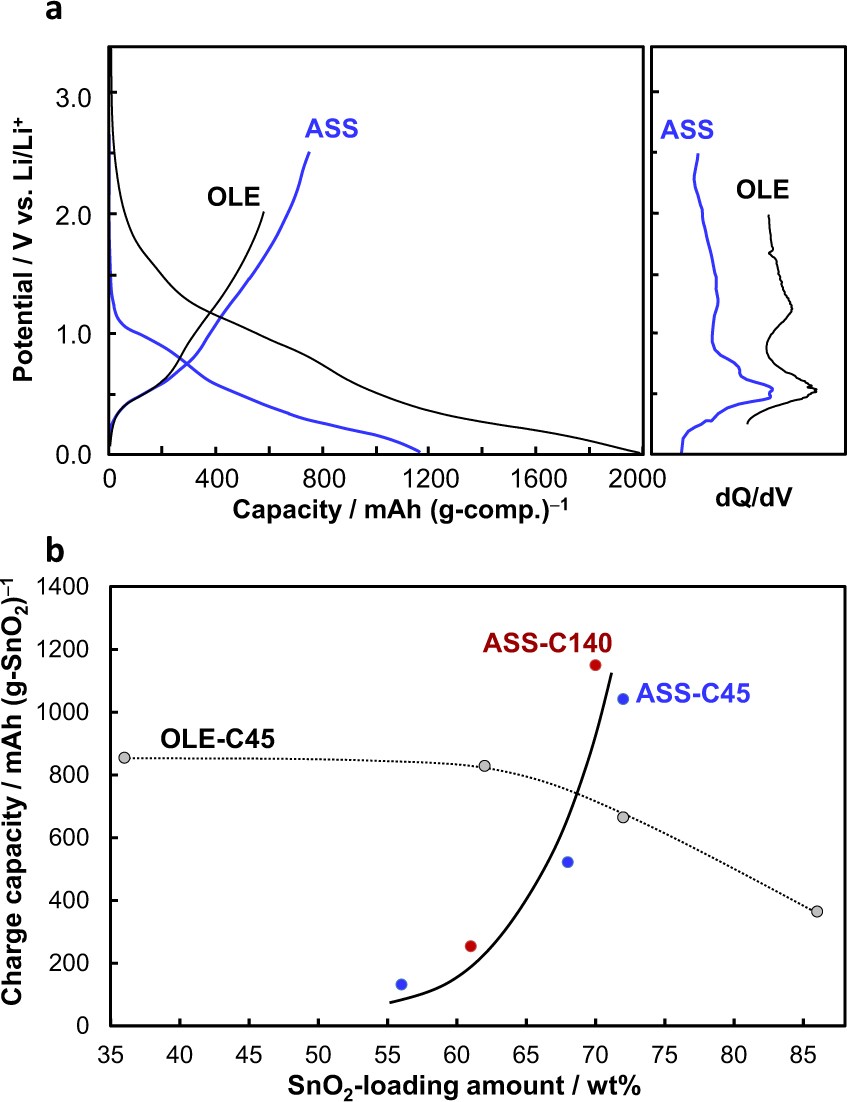

Initial charge-discharge properties of SnO2/CX[Y] versus Li/Li+ in all-solid state (ASS) and organic liquid electrolyte (OLE) systems. (a) Initial charge-discharge and dQ/dV curves of SnO2/C45[72]. (b) Initial charge capacity as a function of SnO2-loading amount of SnO2/C140[Y] (brown) and SnO2/C45[Y] (blue and gray).
