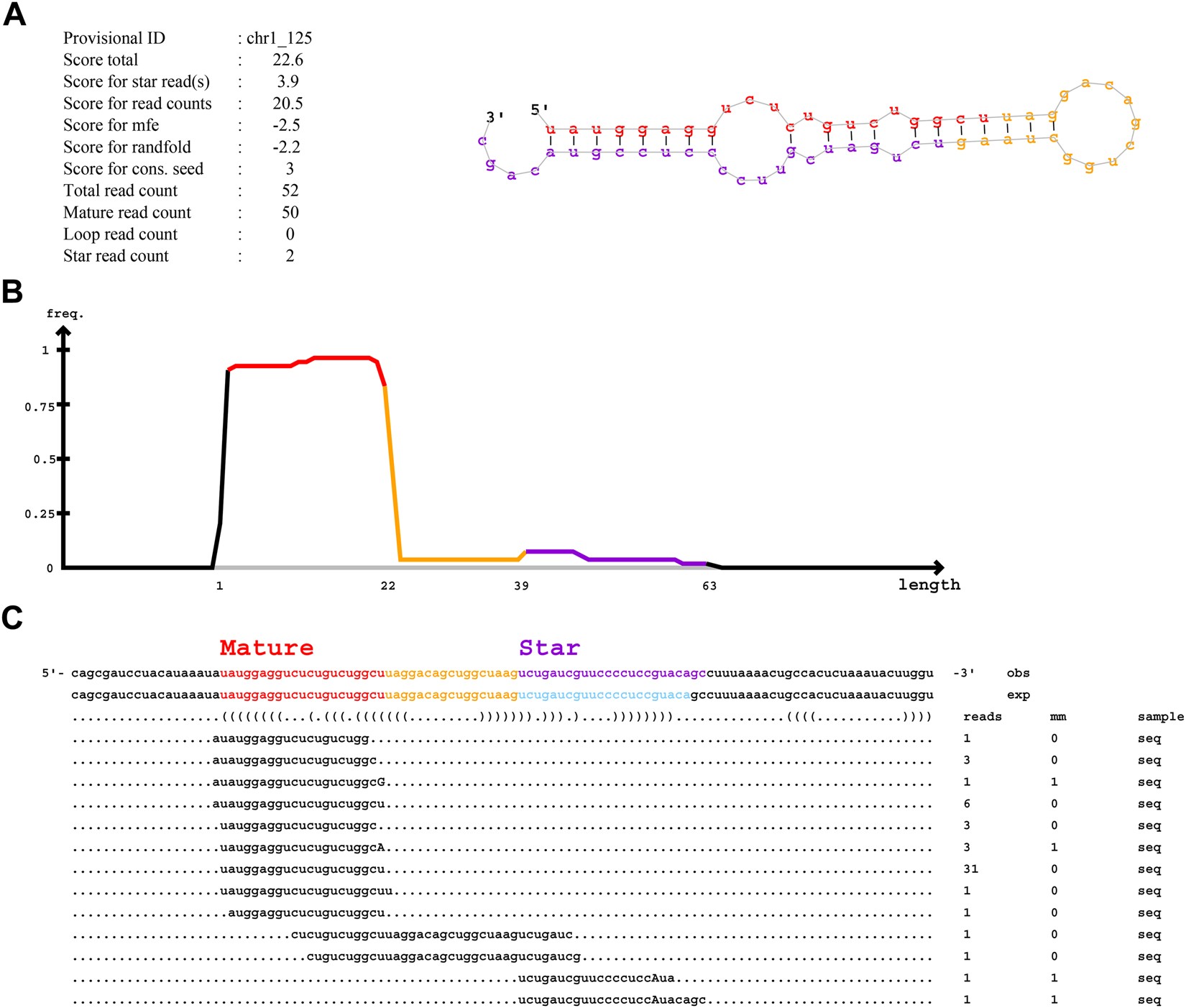

Figure 5

Possible novel miRNA identified by mirDeep2. This molecule is found only in 11 samples from aSAH patients, not present in the control samples. (A) Information and possible secondary structure of this novel miRNA. (B) Frequency of reads aligned in each pre-miRNA region. (C) Read alignment.
